Product Overview
When gift giving matters, the Zooz Z-Wave Long Range Relay ZEN17 800LR for Awnings, Garage Doors, Sprinklers, and More | 2 x NO-C-NC Relays (20A, 10A) | Hub Required (Compatible with Z-Box, Home Assistant, and Hubitat) provides long-term value through well-made build quality. Crafted from Silver Cadmium Oxide. Notable features include control dry and dry contact, contributing to its value-driven character.
Key Features

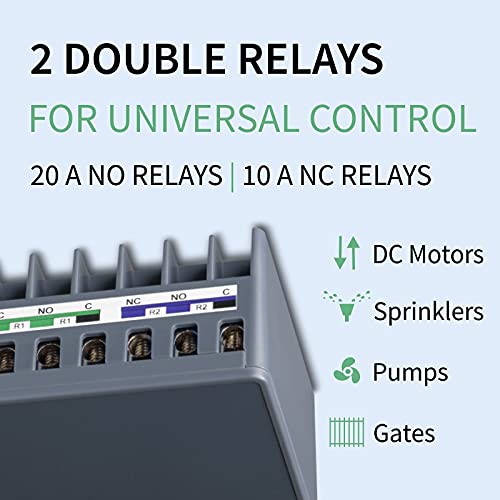

- Control 2 dry contact relays independently with one Z-Wave device. Choose from normally closed (10 A) and normally open (20 A) relays to automate almost any electrical device. Connect an optional wall switch for physical on/off control or use your Z-Wave hub (required, sold separately) for wireless control. Your smart speaker is NOT a Z-Wave hub. This product is NOT supported by Wink or Z-Wave alarm panels.

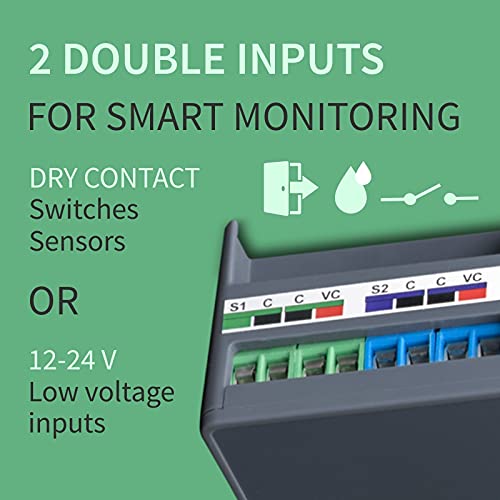

- Monitor 12-24 V or dry contact inputs separately from the dry contact outputs. Connect analog binary sensors to receive status updates in your Z-Wave hub from a connected door sensor, water sensor, HVAC system, or alarm panel. Use the inputs to trigger the outputs automatically.
- Add Z-Wave connectivity to up / down DC motors in screens, motorized blinds, or awnings. Perfect to automate your garage door opener (use a single ZEN17 to control up to 2 garage doors independently), commercial gates, gas fireplace, sprinklers, doorbell, outdoor lighting, pool pump, whole house fan, and any 1-240 V device up to 20 A.
- Power it with a 12-24 V AC/DC power source or a standard USB C cable (included) and a power supply (sold separately). Wall-mount ready. Jumper wires NOT included. Do NOT power with 110 V!

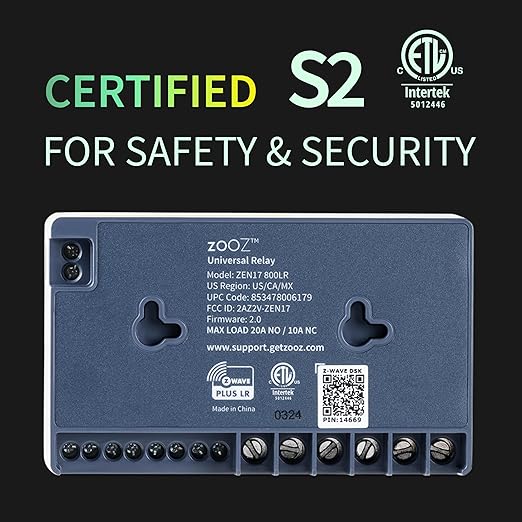

- Enjoy better signal coverage and a stronger Z-Wave repeater for your mesh network with the latest 800 series chip. Long Range ready if your hub supports this feature! It comes with S2 authenticated security and SmartStart for easy pairing. Remembers and restores on/off status after power failure. Built-in auto-on and auto-off timer available if your hub supports advanced settings. The device is ETL certified and conforms with North American safety standards.
- This is an advanced Z-Wave device and it requires an open Z-Wave hub to display correctly. It was tested to work well with Hubitat, Home Assistant, HomeSeer (on 3.0.6.0 Z-Wave plug-in or higher), and compatible with SmartThings with a custom device handler (please go to Zooz support page for details). NOT supported by ADT Pulse, Vivint, Wink, Ring, Alarm.com, or other panels.
Why Choose the Zooz Z-Wave Long Range Relay ZEN17 800LR for Awnings
Few hubs & controllers products demonstrate the time-tested thinking and control dry that the Zooz Z-Wave Long Range Relay ZEN17 800LR for Awnings, Garage Doors, Sprinklers, and More | 2 x NO-C-NC Relays (20A, 10A) | Hub Required (Compatible with Z-Box, Home Assistant, and Hubitat) shows — both lead to reliable performance.
Best For
Buyers shopping for gift giving will find the Zooz Z-Wave Long Range Relay ZEN17 800LR for Awnings, Garage Doors, Sprinklers, and More | 2 x NO-C-NC Relays (20A, 10A) | Hub Required (Compatible with Z-Box, Home Assistant, and Hubitat) a strong match thanks to long-term value.
Quick Summary
The Zooz Z-Wave Long Range Relay ZEN17 800LR for Awnings is a Hubs & Controllers product by ZOOZ. Connector Type: Usb C Or 12-24 V Ac/Dc Power Source Connector. Contact Material: Silver Cadmium Oxide. Contact Type: 2no 2nc. Current Rating: 10 Amps. Mounting Type: Plug In Mount. Price: $75.49.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Usb C Or 12-24 V Ac/Dc Power Source Connector |
| Contact Material | Silver Cadmium Oxide |
| Contact Type | 2no 2nc |
| Current Rating | 10 Amps |
| Mounting Type | Plug In Mount |
