Product Overview

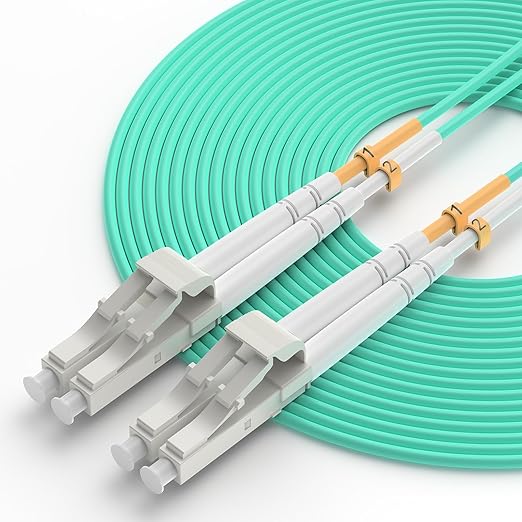

A focused, value-driven product, the Yonwide Om3 LC-LC Fiber Patch Cable, 100m (328 ft), Multimode, 10Gb, Duplex, LSZH, MM Fiber brings reliable performance to daily routines without compromise. Key specs include brand: Yonwide, connector type: Lc Lc, cable type: LC LC. Notable features include om3 lc and lc fiber, contributing to its user-tested character.
Key Features

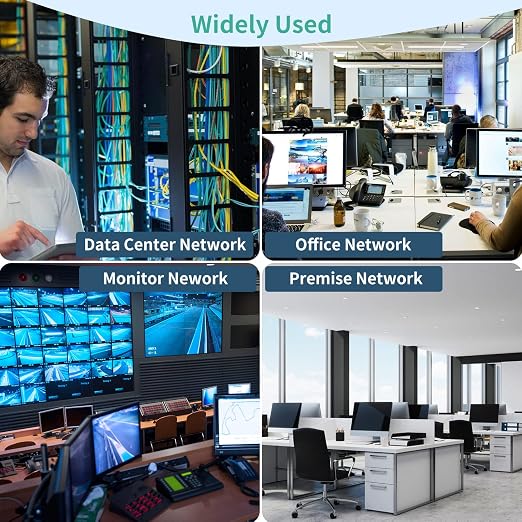

- 【 OM3 lc to lc fiber patch cable 100m 】 OM3 fiber lc to lc 100m mmf can be applied in connecting 10GBase-SR, 10GBase-LRM, SFP+ transceivers for 1G/10G/40G/100G Ethernet connections, etc. OM3 multimode fiber lc to lc 100m fiber patch cord is widely used in LAN, SAN, fast ethernet, fiber channel, local area network, wide area networks, data center, premise and so on. OM3 mm fiber 100m is the most suitable fiber specification for 10 gigabit ethernet connections.
- 【 Long Transmission Distance 】 Yonwide OM3 lc to lc fiber can support 1 Gigabit Ethernet Distance of 550 meters at 850nm; 10 Gigabit Ethernet Distance of 300 meters at 850nm; 40 Gigabit Ethernet Distance of 240 meters at 850nm. 100 Gigabit Ethernet Distance of 100 meters at 850nm. Its bandwidth is 2000 MHz·km @850nm.

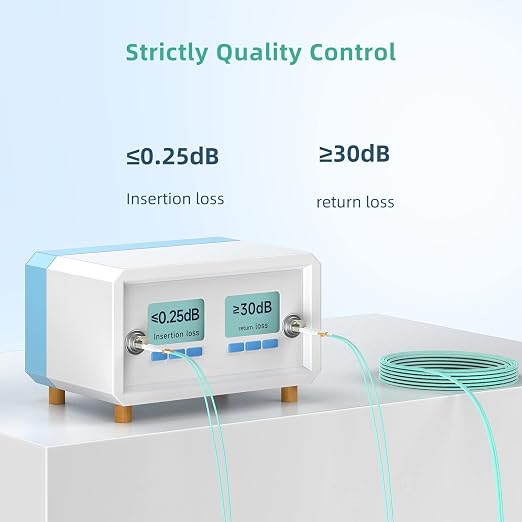

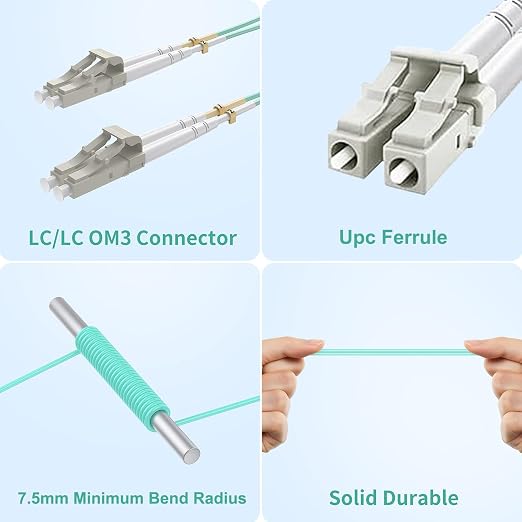

- 【 High Performance MMF 】 7.5mm minimum bend radius, which makes it suitable to be used in narrow spaces; Insertion loss≤0.25(dB), return loss≥30(dB), the low insertion loss and high return loss make sure the stability of transmission; It can work at -20°C to 70°C, which is almost suitable for all common environments; Jacket outside diameter is 2.0mm.

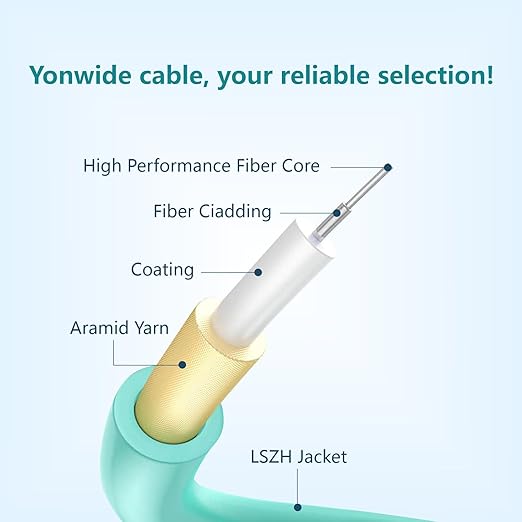

- 【 Reliable Quality & Easy Operation 】 Yonwide OM3 lc to lc fiber patch cable 100m is designed with LSZH jacket, UPC polish, Zirconia ceramic ferrules and Aramid inside optical cable. The connectors are joined with a plastic clip, if you need to connect individual fiber access, you can separate the connectors.
- 【 After Sales Service 】 We value customers‘ experience, if you have any questions about the product, you can consult us and we will reply you soon.
Why Choose the YonwideFiber Yonwide Om3 LC-LC Fiber Patch Cable
For shoppers comparing optical options, the Yonwide Om3 LC-LC Fiber Patch Cable, 100m (328 ft), Multimode, 10Gb, Duplex, LSZH, MM Fiber provides quality quality alongside om3 lc — together they support thoughtful design.
Best For
The YonwideFiber Yonwide Om3 LC-LC Fiber Patch Cable is best suited for: LC LC, all common environments; Jacket outside diameter is 2.
Quick Summary
The YonwideFiber Yonwide Om3 LC-LC Fiber Patch Cable is a Optical product by YonwideFiber. Brand: Yonwide. Connector Type: Lc Lc. Cable Type: LC LC. Compatible Devices: LC LC. Special Feature: LC LC. Price: $90.73.

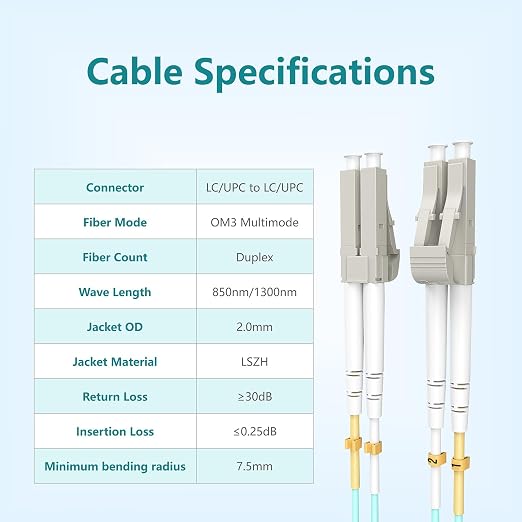

Product Specifications
| Specification | Details |
|---|---|
| Brand | Yonwide |
| Connector Type | Lc Lc |
| Cable Type | LC LC |
| Compatible Devices | LC LC |
| Special Feature | LC LC |
