Product Overview
Practical, quality, and built around satisfying experience, the SunTouch Sunstat Relay R4, Connects to All SunTouch Thermostats, Control Panel for Larger Electric Floor Heating Systems, Built-in 15-Amp Relay Controls Up to 150 sq ft at 120V or 300 sq ft at 240V is a strong pick for common scenarios. Constructed using Brass. Notable features include suntouch sunstat and sunstat relay, contributing to its reliable character.
Key Features

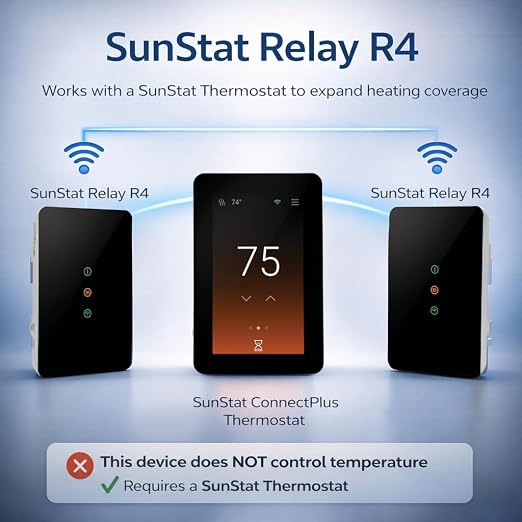

- The SunTouch SunStat Relay R4 is not a thermostat. This device is designed to extend the area controlled by a Sunstat thermostat. The SunStat Relay R4 is a dual-voltage 120V/240V device that controls the voltage to SunTouch electric floor heating systems that require more than 15 amps; it should not be used with older model thermostats or relays. Includes built-in GFCI and status indicators to ensure safe operation.
- This relay device wires directly to SunStat thermostats - Connect Plus, Connect, and Command - for simple control of larger systems. Each relay requires an additional 20-amp circuit and individual circuit breaker.
- Utilizing advanced 915MHz wireless technology, the SunStat Relay R4 can also communicate wirelessly with the SunStat ConnectPlus Thermostat, which supports Wi-Fi connectivity with apps for Android and iOS mobile devices and works with Alexa and Hey Google for voice control of your floor warming system. The free Watts Home app enables convenient monitoring and control of your system from anywhere and any time.
- This relay device can control up to 150 sq. ft. at 120V or 300 sq. ft. at 240V. Additionally, it allows daisy-chaining of up to ten relays for expansive control of up to 1,500 sq. ft. at 120V or 3,000 sq. ft. at 240V, making it ideal for large-scale installations.
- SunTouch provides a wide range of electric floor heating and snow melting systems that are widely used in residential, commercial, and institutional projects to create comfortable, warm, safe, inviting spaces. With more than 30 years of experience in electric radiant heating, we are proud to deliver quality products, simple-design services, and world-class support.
Why Choose the SunTouch Sunstat Relay R4
The SunTouch Sunstat Relay R4, Connects to All SunTouch Thermostats, Control Panel for Larger Electric Floor Heating Systems, Built-in 15-Amp Relay Controls Up to 150 sq ft at 120V or 300 sq ft at 240V reflects deliberate thoughtfully designed choices, with suntouch sunstat that supports practical use during regular heaters & accessories use.
Best For
The SunTouch Sunstat Relay R4 is best suited for: large-scale installations.
Quick Summary
The SunTouch Sunstat Relay R4 is a Heaters & Accessories product by SunTouch. Connector Type: Plug-in Or Quick Connect. Contact Material: Brass. Contact Type: Normally Open. Current Rating: 15 Amps. Mounting Type: Panel Mount or DIN Rail Mount. Price: $174.93.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Plug-in Or Quick Connect |
| Contact Material | Brass |
| Contact Type | Normally Open |
| Current Rating | 15 Amps |
| Mounting Type | Panel Mount or DIN Rail Mount |
