Product Overview
The Red Circular Dot Laser Module, 650 nm, Class 2, Industrial Laser Projector, 10~36 VDC Operating Voltage, VLM-650-70 LPT, ideal for Medical, Laboratory, Machine Vision hits the sweet spot of practical construction and everyday convenience, ideal for practical situations. Made with Metal, weighing 200 Grams, available in Silver. Notable features include vlm-650-70 lpt and lpt produces, contributing to its thoughtfully designed character.
Key Features
- VLM-650-70 LPT produces an extremely small and sharp circular red laser dot optimized for precision alignment within 1 meter. Provides a precision laser spot for applications such as tool path indication, component positioning verification, optical sensing alignment, calibration reference in inspection systems.

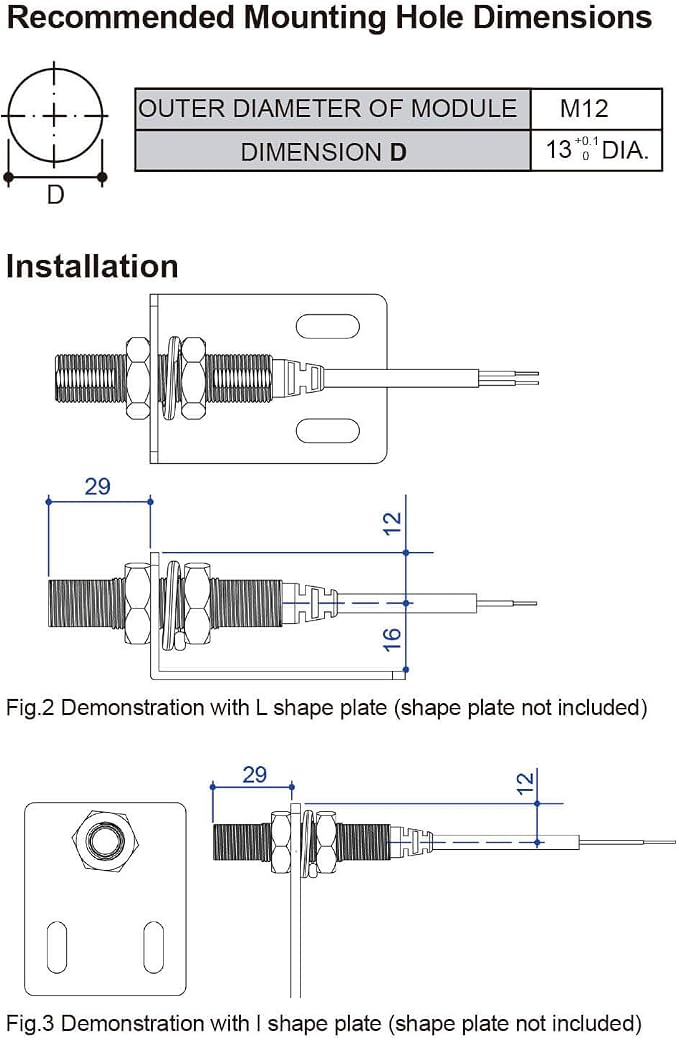

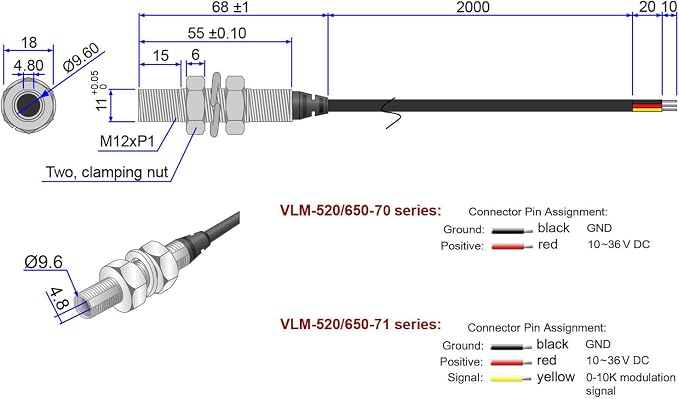

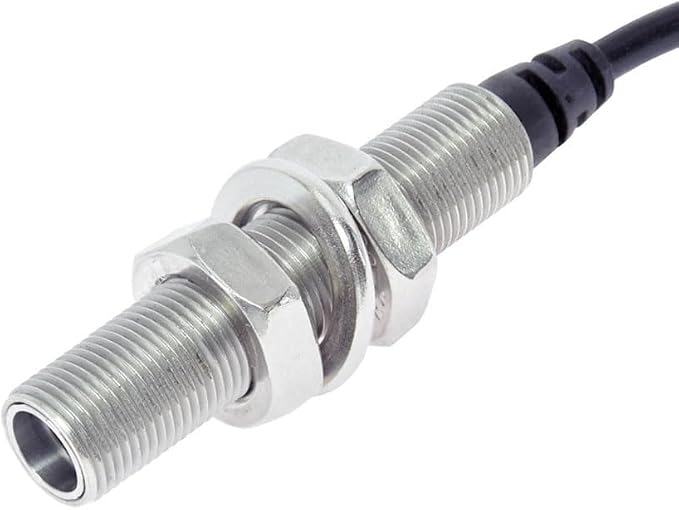

- Constructed with a stainless steel housing (M12 × 68 mm) and a high-quality aspherical glass lens, ensuring stable beam profile, optical clarity, and long-term reliability in continuous-use industrial environments.

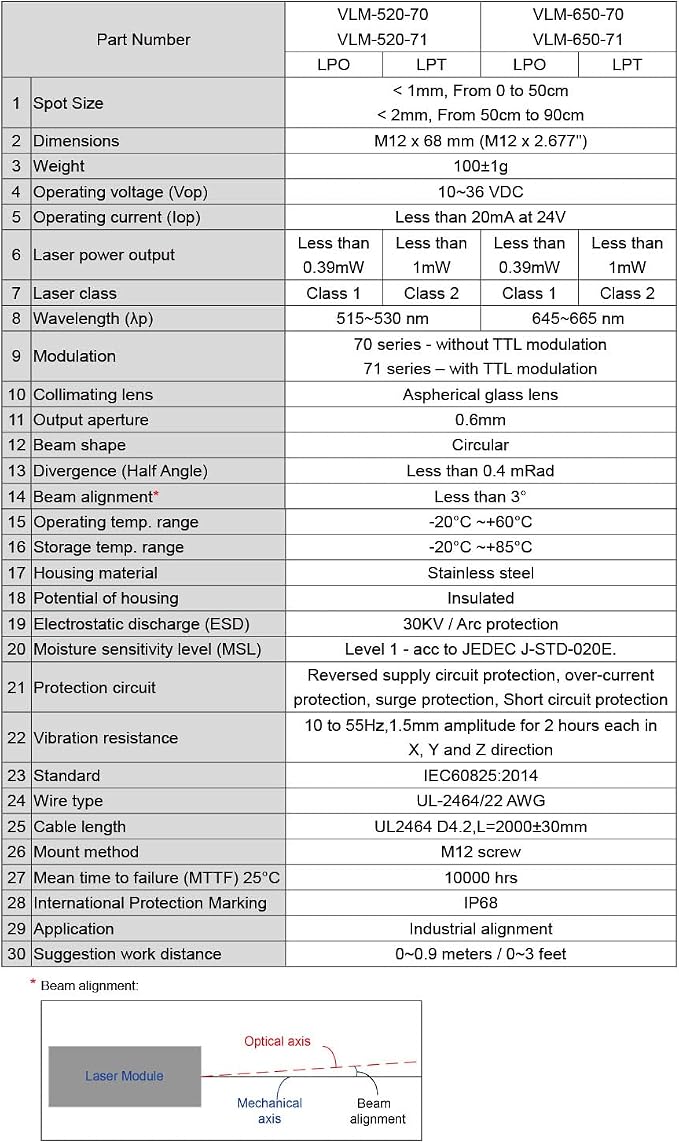

- Class 2 / Class II laser output (less than 1 mW). Operating voltage: 10~36 VDC. Beam divergence <0.4 mRad provides a concentrated dot with consistent spot size within 1 meter. Since the laser dot is very small and focused within 1 meter, it will appear very bright.
- Engineered for long-term reliability, the 650 nm module is tested for vibration resistance (10~55 Hz, 1.5 mm amplitude) and built with an insulated housing to ensure electrical safety. It operates consistently from -20°C to +60°C, making it ideal for demanding environments such as manufacturing automation, inspection stations, CNC systems and industrial tooling applications.
- Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
Why Choose the Quarton Red Circular Dot Laser Module
With vlm-650-70 lpt and stainless steel, the Red Circular Dot Laser Module, 650 nm, Class 2, Industrial Laser Projector, 10~36 VDC Operating Voltage, VLM-650-70 LPT, ideal for Medical, Laboratory, Machine Vision achieves satisfying experience that others in the diode lasers category often miss.
Best For
The Quarton Red Circular Dot Laser Module is best suited for: demanding environments such as manufacturing automation.
Quick Summary
The Quarton Red Circular Dot Laser Module is a Diode Lasers product by Quarton. Brand: Quarton. Material: Metal. Color: Silver. Style: VLM-650-70 LPT - Red laser, Class 2, without TTL. Item Weight: 200 Grams. Price: $206.25.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Material | Metal |
| Color | Silver |
| Style | VLM-650-70 LPT - Red laser, Class 2, without TTL |
| Item Weight | 200 Grams |
