Product Overview

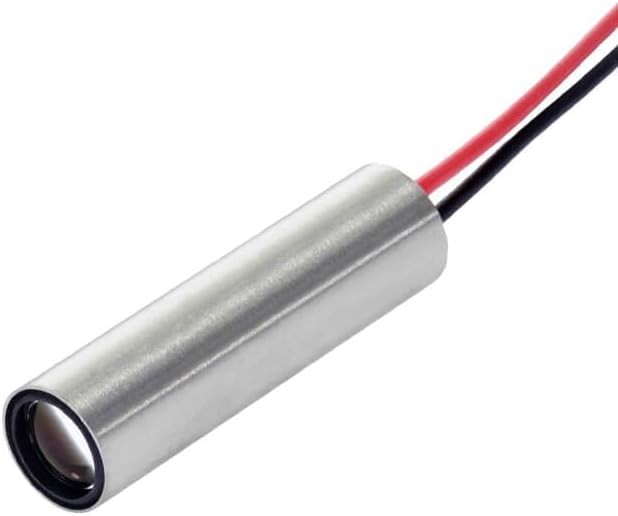

The IR Dot Laser Module VLM-1050-52 LPA, 1050nm, Operating Voltage 3~6 VDC, Class 3R, 1~30 meters woking distance achieves everyday convenience through practical engineering, making it dependable for practical situations. Crafted from Stainless Steel, measuring 1.2"L x 0.33"W, weighing 4.2 Grams. Notable features include high-quality construction and module features, contributing to its thoughtfully designed character.
Key Features
- High-Quality Construction: this module features stainless steel housing for exceptional durability and reliability in industrial environments. Offers a 10,000-hour lifespan for reliable performance in diverse environments.
- Advanced Optical Design: Incorporates a 1050 nm IR laser diode with an aspherical glass collimating lens, delivering a sharp, stable infrared laser spot and operating effectively across a wide temperature range. Beam Divergence (Full Angle): 0.5 mRad.

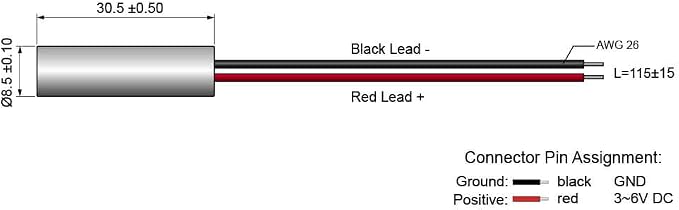

- Integrated Safety & Performance Features: Equipped with an Auto-Power-Control (APC) driver circuit to ensure consistent and safe laser output. Operating Voltage: 3~6 VDC. Dimension: Ø8.5 x 30.5 mm (Ø0.334" x 1.2"). Laser Class: LPA - Class 3R / Class IIIa (8±1 mW). Connection Type: Lead wire.
- The laser spot size at 10 meters is 5±1 mm. Idea for alignment tasks: Positioning, Measuring, Pointing, Laser Sighting Device, Automotive Industry and Medical & Science.
- Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
Why Choose the Quarton IR Dot Laser Module VLM-1050-52 LPA
Few diode lasers products demonstrate the well-made thinking and high-quality construction that the IR Dot Laser Module VLM-1050-52 LPA, 1050nm, Operating Voltage 3~6 VDC, Class 3R, 1~30 meters woking distance shows — both lead to satisfying experience.
Best For
The IR Dot Laser Module VLM-1050-52 LPA, 1050nm, Operating Voltage 3~6 VDC, Class 3R, 1~30 meters woking distance fits practical situations scenarios well, providing everyday convenience and well-made reliability.
Quick Summary
The Quarton IR Dot Laser Module VLM-1050-52 LPA is a Diode Lasers product by Quarton. Brand: Quarton. Material: Stainless Steel. Product Dimensions: 1.2"L x 0.33"W. Style: 1050nm IR Laser, Class 3R - VLM-1050-52 LPA. Item Weight: 4.2 Grams. Price: $272.25.

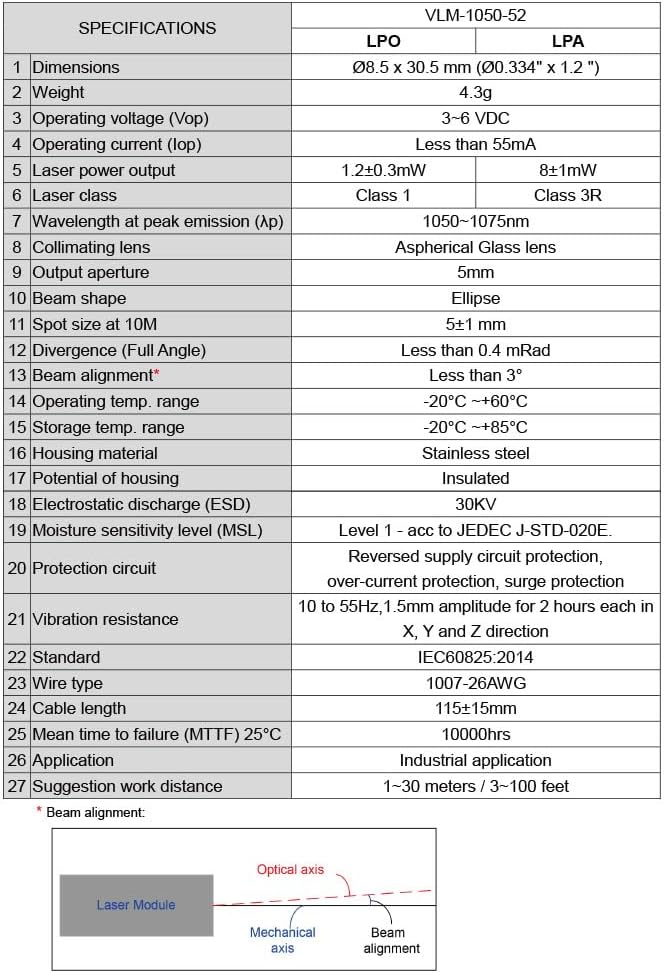

Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Material | Stainless Steel |
| Product Dimensions | 1.2"L x 0.33"W |
| Style | 1050nm IR Laser, Class 3R - VLM-1050-52 LPA |
| Item Weight | 4.2 Grams |
