Product Details

Product Overview

For those navigating practical situations, the IR Dot Laser Module, 780nm, Class 3R, Less Than 3mW, VLM-780-01 LPA – With APC Driver, D10.5 x L19 mm, 2.6~6 VDC Operation Voltage, 30m working distance, Laser Head, Made in Taiwan offers a time-tested option backed by everyday convenience. Crafted from Brass, weighing 43 Grams. Notable features include nir industrial and industrial laser, contributing to its quality character.

Key Features

  • NIR INDUSTRIAL LASER SPOT - 780 nm. The VLM-780-01 LPA emits a Near-Infrared (NIR) 780 nm wavelength that appears as a faint red glow under low-light conditions. Ideal for applications requiring discreet illumination, infrared sensing, or low-visibility alignment.
  • Built with an aspherical plastic collimating lens engineered for stable and uniform spot performance. Designed for long-term use with a Mean Time To Failure (MTTF) of 10,000 hours at 25°C - suitable for automation, optical inspection systems, and continuous-use environments.

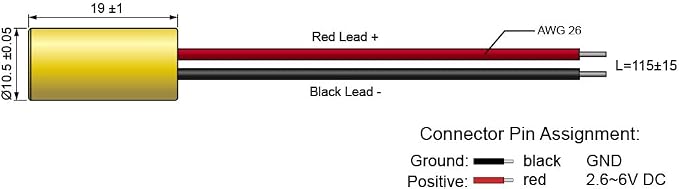

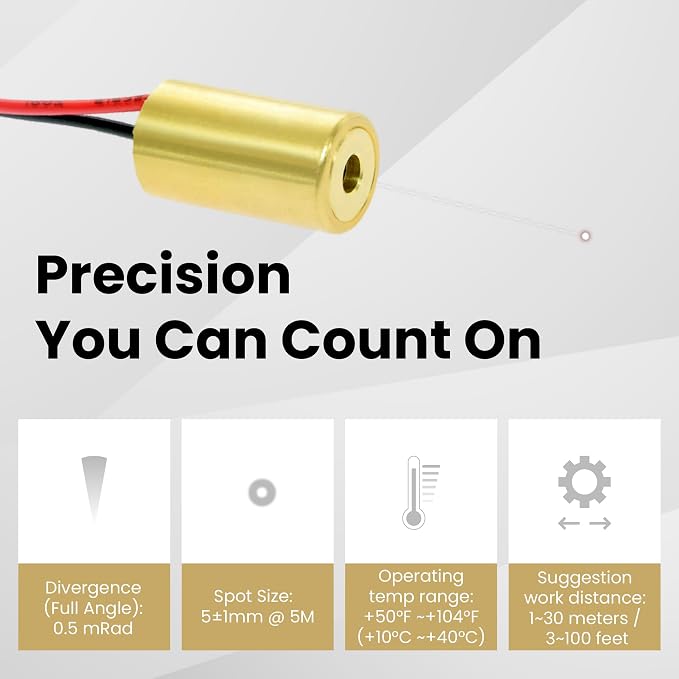

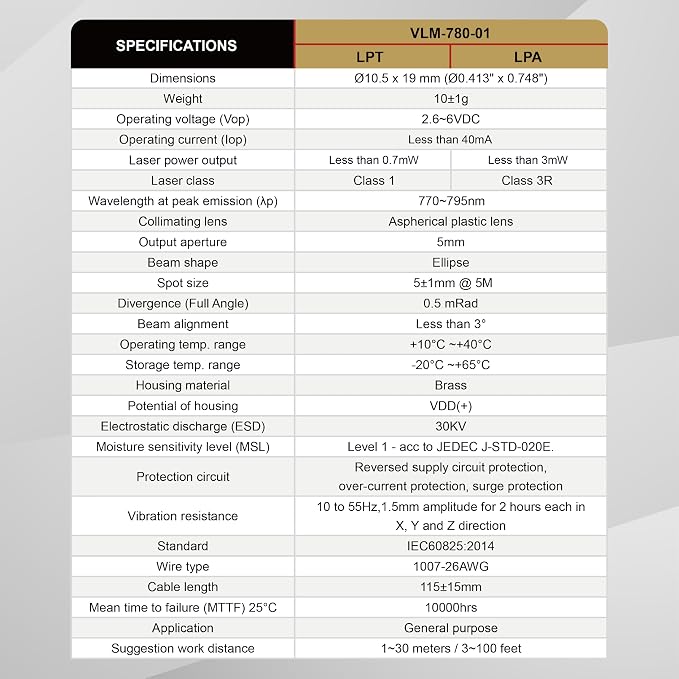

  • Wavelength: 770~795 nm (typ. 780 nm); Laser Output: Less than 3 mW (Class 3R) Operating Voltage: 2.6~6 VDC; Beam Divergence (Full Angle): 0.5 mRad. The Class 3R rating supports safe deployment in industrial or consumer-embedded devices.
  • Made with a rugged brass housing for enhanced stability, heat management, and durability. The integrated Auto-Power-Control (APC) driver helps maintain consistent output while offering reverse-polarity, surge, and over-current protection for reliable operation in demanding environments.
  • Manufactured in Taiwan by Quarton, this NIR laser module supports applications such as barcode scanning, optical communication systems, spectroscopy instruments, sensor triggering, research projects, optical storage devices, and medical low-level laser applications where stable infrared output is essential.

Why Choose the Quarton IR Dot Laser Module

Among comparable line lasers products, the IR Dot Laser Module, 780nm, Class 3R, Less Than 3mW, VLM-780-01 LPA – With APC Driver, D10.5 x L19 mm, 2.6~6 VDC Operation Voltage, 30m working distance, Laser Head, Made in Taiwan differentiates through practical build and nir industrial, both pointing toward satisfying experience.

Best For

The Quarton IR Dot Laser Module is best suited for: applications requiring discreet illumination, long-term use with a Mean Time To Failure (MTTF) of 10.

Quick Summary

The Quarton IR Dot Laser Module is a Line Lasers product by Quarton. Brand: Quarton. Material: Brass. Style: VLM-780-01 LPA - IR laser dot 780nm, Class 3R. Item Weight: 43 Grams. Operation Mode: Automatic. Price: $57.73.

Product Specifications

Specification Details
Brand Quarton
Material Brass
Style VLM-780-01 LPA - IR laser dot 780nm, Class 3R
Item Weight 43 Grams
Operation Mode Automatic
