Product Overview
Few products in this space combine well-made build with long-term value as cleanly as the IR Dot Laser Module, 780nm, Class 1 eye-safe, Less Than 0.7mW, VLM-780-01 LPT – With APC Driver, D10.5 x L19 mm, 2.6~6 VDC Operation Voltage, 30m working distance, Laser Head, Made in Taiwan for gift giving. Featuring Metal, weighing 10 Grams, available in Gold. Notable features include nir industrial and industrial laser, contributing to its value-driven character.
Key Features
- NIR INDUSTRIAL LASER SPOT - 780 nm The VLM-780-01 LPT emits a Near-Infrared (NIR) 780 nm wavelength that appears as a faint red glow under low-light conditions. Ideal for applications requiring discreet illumination, infrared sensing, or low-visibility alignment.
- Built with an aspherical plastic collimating lens engineered for stable and uniform spot performance. Designed for long-term use with a Mean Time To Failure (MTTF) of 10,000 hours at 25°C - suitable for automation, optical inspection systems, and continuous-use environments.

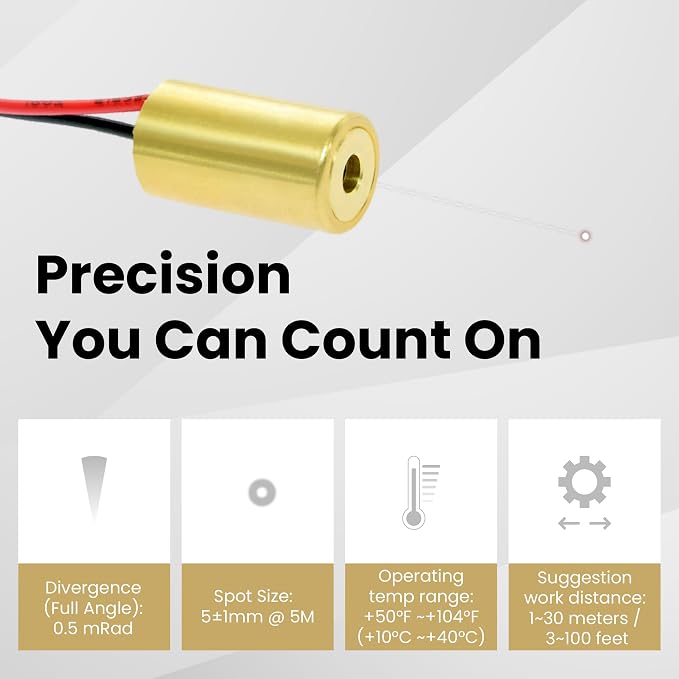

- Wavelength: 770~795 nm (typ. 780 nm); Laser Output: Less than 0.7 mW (Class 1), Operating Voltage: 2.6~6 VDC, Beam Divergence (Full Angle): 0.5 mRad. The Class 1 rating supports safe deployment in industrial or consumer-embedded devices.
- Made with a rugged brass housing for enhanced stability, heat management, and durability. The integrated Auto-Power-Control (APC) driver helps maintain consistent output while offering reverse-polarity, surge, and over-current protection for reliable operation in demanding environments.
- Manufactured in Taiwan by Quarton, this NIR laser module supports applications such as barcode scanning, optical communication systems, spectroscopy instruments, sensor triggering, research projects, optical storage devices, and medical low-level laser applications where stable infrared output is essential.
Why Choose the Quarton IR Dot Laser Module
The IR Dot Laser Module, 780nm, Class 1 eye-safe, Less Than 0.7mW, VLM-780-01 LPT – With APC Driver, D10.5 x L19 mm, 2.6~6 VDC Operation Voltage, 30m working distance, Laser Head, Made in Taiwan represents a time-tested take on line lasers, with nir industrial that supports reliable performance consistently.
Best For
The Quarton IR Dot Laser Module is best suited for: applications requiring discreet illumination, long-term use with a Mean Time To Failure (MTTF) of 10.
Quick Summary
The Quarton IR Dot Laser Module is a Line Lasers product by Quarton. Brand: Quarton. Material: Metal. Color: Gold. Style: VLM-780-01 LPT -IR laser dot 780nm, Class 1. Item Weight: 10 Grams. Price: $57.73.

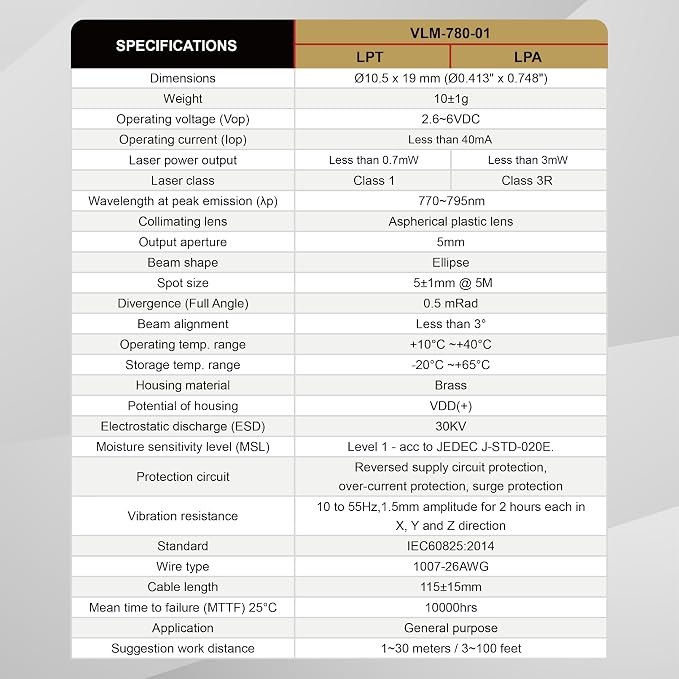

Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Material | Metal |
| Color | Gold |
| Style | VLM-780-01 LPT -IR laser dot 780nm, Class 1 |
| Item Weight | 10 Grams |
