Product Overview
The IR Circular Dot Laser Module, 940 nm, Class 1, Industrial Laser Projector, 10~36 VDC Operating Voltage, VLM-940-70 LPO, ideal for Medical, Laboratory, Machine Vision responds to practical situations with well-made characteristics and everyday convenience that hold up. weighing 200 Grams. Notable features include vlm-940-70 lpo and lpo produces, contributing to its value-driven character.
Key Features
- VLM-940-70 LPO produces an extremely small and sharp circular infrared laser dot optimized for precision alignment within 1 meter. Provides a precision laser spot for applications such as tool path indication, component positioning verification, optical sensing alignment, calibration reference in inspection systems.

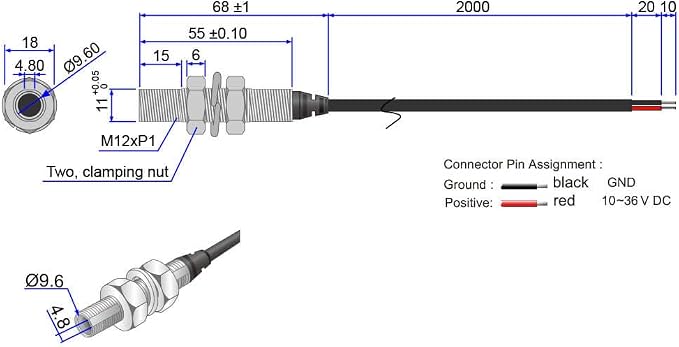

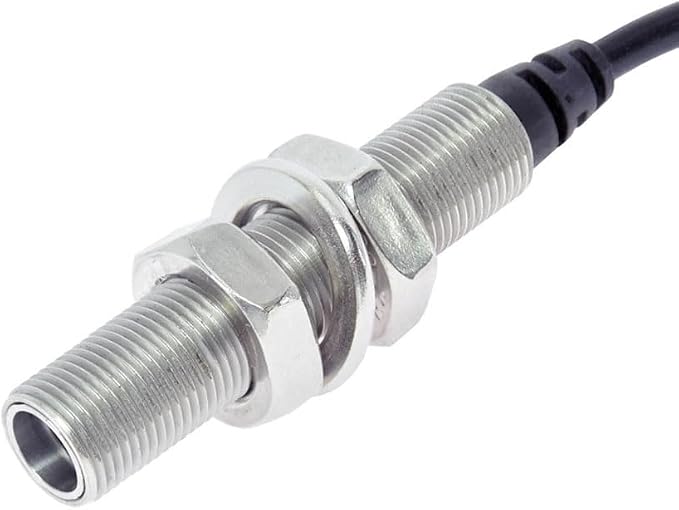

- Constructed with a stainless steel housing (M12 × 68 mm) and a high-quality aspherical glass lens, ensuring stable beam profile, optical clarity, and long-term reliability in continuous-use industrial environments.
- Class 1 laser output (less than 1.1 mW) ensures eye-safe operation under normal conditions. Operating voltage: 10~36 VDC. Beam divergence <0.4 mRad provides a concentrated dot with consistent spot size within 1 meter. Since the laser dot is very small and focused within 1 meter, it will appear very bright.
- Engineered for long-term reliability, the 940 nm module is tested for vibration resistance (10~55 Hz, 1.5 mm amplitude) and built with an insulated housing to ensure electrical safety. It operates consistently from -20°C to +60°C, making it ideal for demanding environments such as manufacturing automation, inspection stations, CNC systems and industrial tooling applications.
- Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
Why Choose the Quarton IR Circular Dot Laser Module
For long-term diode lasers use, the IR Circular Dot Laser Module, 940 nm, Class 1, Industrial Laser Projector, 10~36 VDC Operating Voltage, VLM-940-70 LPO, ideal for Medical, Laboratory, Machine Vision offers time-tested build, vlm-940-70 lpo, and satisfying experience — a combination that pays off over time.
Best For
The Quarton IR Circular Dot Laser Module is best suited for: demanding environments such as manufacturing automation.
Quick Summary
The Quarton IR Circular Dot Laser Module is a Diode Lasers product by Quarton. Brand: Quarton. Style: VLM-940-70 LPO - IR laser 940nm, Class 1, without TTL. Item Weight: 200 Grams. Operation Mode: Automatic. Price: $275.55.

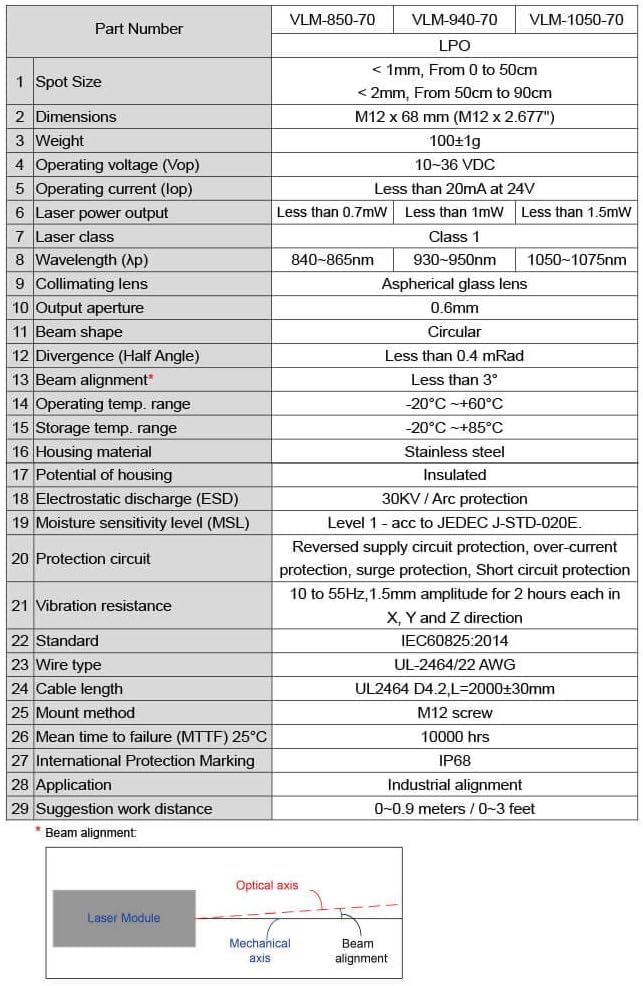

Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Style | VLM-940-70 LPO - IR laser 940nm, Class 1, without TTL |
| Item Weight | 200 Grams |
| Operation Mode | Automatic |
