Product Overview
Combining durable design and gift presentation, the ICC CAT6A Patch Panel, UL Listed & PoE++ Rated 10 Gigabit Applications, Rackmount 24 Port 1U 19-Inch Network Patch Panel with Rear 110 IDC Terminal Blocks for Gigabit Network Switch, Black serves everyday accessorizing effectively. Key specs include brand: ICC, connector type: RJ45, cable type: Component, Ethernet. Notable features include rack-mounted cat6a and cat6a component-rated, contributing to its gift-worthy character.
Key Features

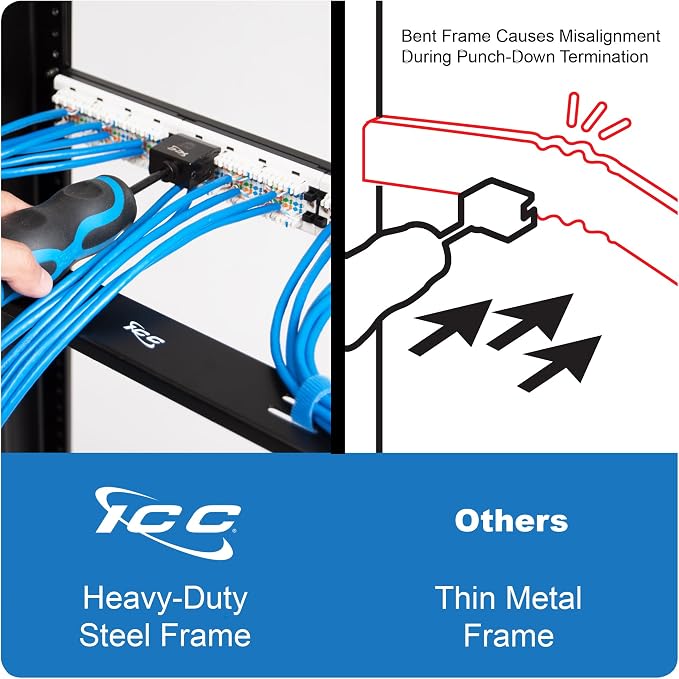

- Rack-mounted CAT6A component-rated fixed patch panel made with 16-gauge cold-rolled steel (16 GA CRS), delivering excellent performance for data networks requiring maximum speed and bandwidth. Backwards compatible with Cat6 and Cat5e cabling.

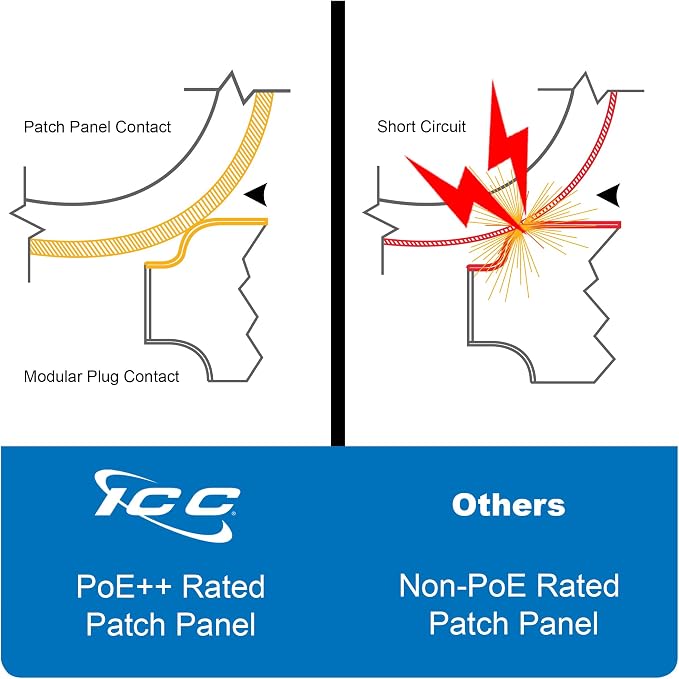

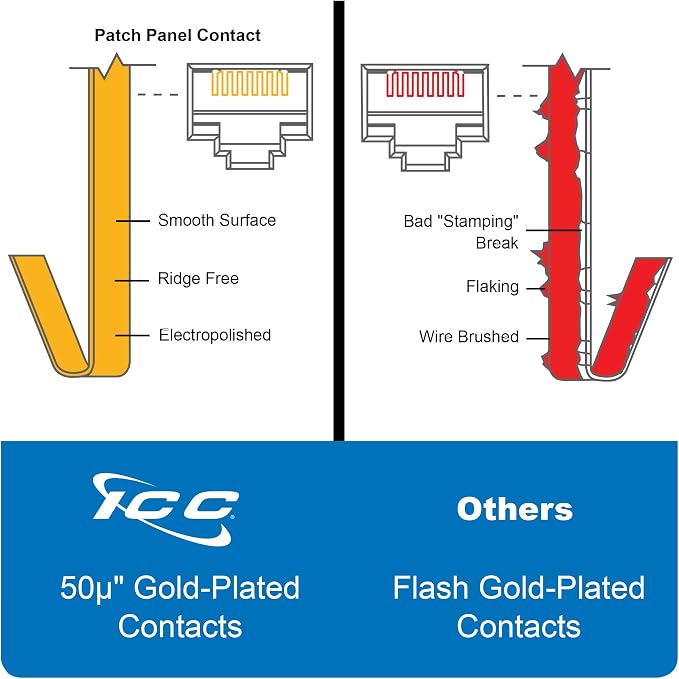

- Designed for 10 Gigabit Ethernet, ensuring your network is future-proof. Ideal for 10 Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE++) up to 100W.

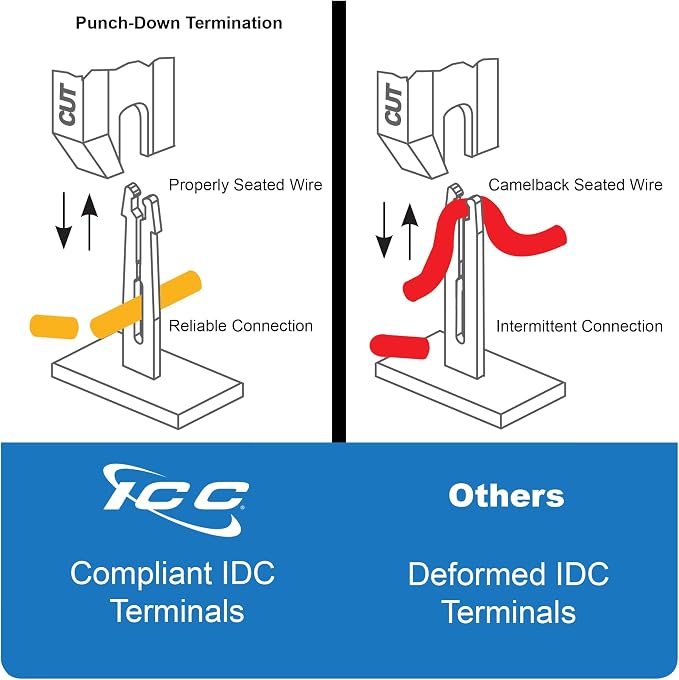

- Featuring 110 IDC connections on the rear, this design reduces termination time and allows for re-termination over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference. It fits standard 19" EIA rack mount width with a 1U (1.75") standard height.
- Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance.

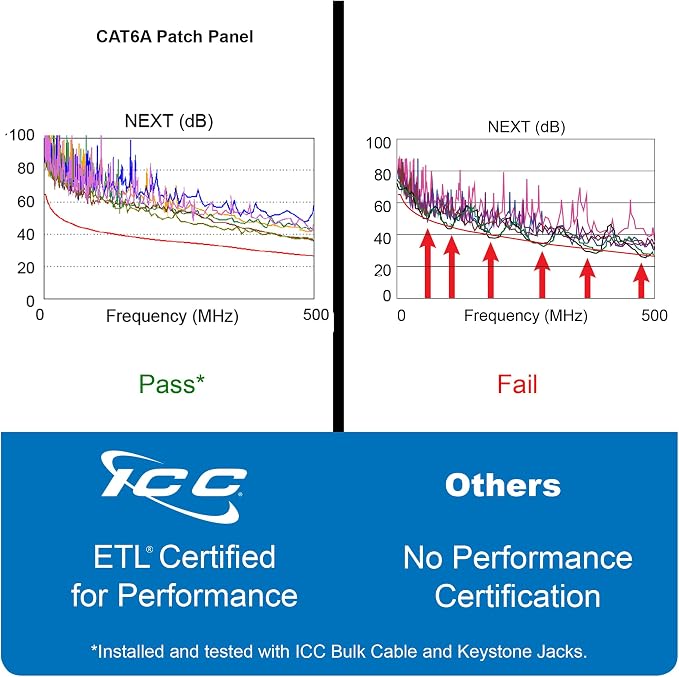

- The 110-Type IDC connections on the rear are positioned vertically to effectively reduce potential alien crosstalk. This design is engineered to exceed ANSI/TIA-568 Category 6A connecting hardware requirements, providing enhanced crosstalk cancellation, reducing return loss, and improving overall network performance.
Why Choose the ICC CAT6A Patch Panel
For shoppers comparing wiring & connecting options, the ICC CAT6A Patch Panel, UL Listed & PoE++ Rated 10 Gigabit Applications, Rackmount 24 Port 1U 19-Inch Network Patch Panel with Rear 110 IDC Terminal Blocks for Gigabit Network Switch, Black provides hypoallergenic quality alongside rack-mounted cat6a — together they support sensitive-skin friendly.
Best For
The ICC CAT6A Patch Panel is best suited for: PoE++ Rated to Power Devices, 10 Gigabit Ethernet.
Quick Summary
The ICC CAT6A Patch Panel is a Wiring & Connecting product by ICC. Brand: ICC. Connector Type: RJ45. Cable Type: Component, Ethernet. Compatible Devices: Ethernet Devices, Security Cameras. Special Feature: PoE++ Rated to Power Devices. Price: $186.27.
Product Specifications
| Specification | Details |
|---|---|
| Brand | ICC |
| Connector Type | RJ45 |
| Cable Type | Component, Ethernet |
| Compatible Devices | Ethernet Devices, Security Cameras |
| Special Feature | PoE++ Rated to Power Devices |
