Product Overview
Whether for daily routines or similar needs, the GY-SGP30 Gas Sensor, Air Quality Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, a Digital Multi-Pixel Gas Sensor for Indoor Air Quality Monitoring,co2 Sensor Arduino I2C delivers compact quality and reliable performance. Constructed using metal, weighing 0.18 Ounces, available in Black. Notable features include gy-sgp30 gas and gas sensor, contributing to its versatile character.
Key Features

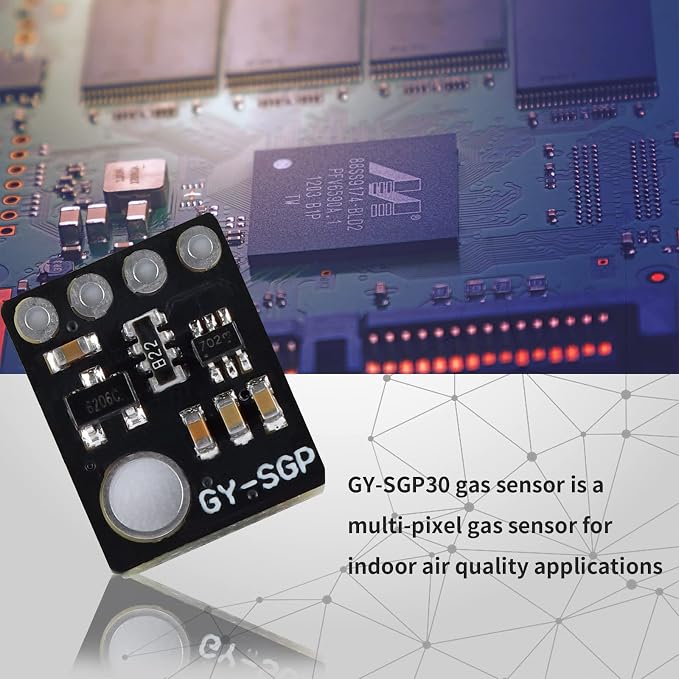

- ♥GY-SGP30 gas sensor is a multi-pixel gas sensor for indoor air quality applications with excellent long-term stability, I2C interface with TVOC and CO2eq output signals, very small 6-pin DFN package: 2.45 x 2.45 x 0.9 mm3, Low Power: 48 mA at 1.8V, Reflow Solderable
- ♥ Product parameter range：① Power supply voltage VDD: ‑0.3V to +2.16V<br> <br>②Power supply voltage VDDH:‑0.3V to +2.16V<br> <br>③Storage temperature range: ‑40 to +125°C <br> <br>④ Operating temperature range: ‑40 to +85°C<br> <br> ⑤ Humidity range: 10%‑95% (non-condensing)<br>

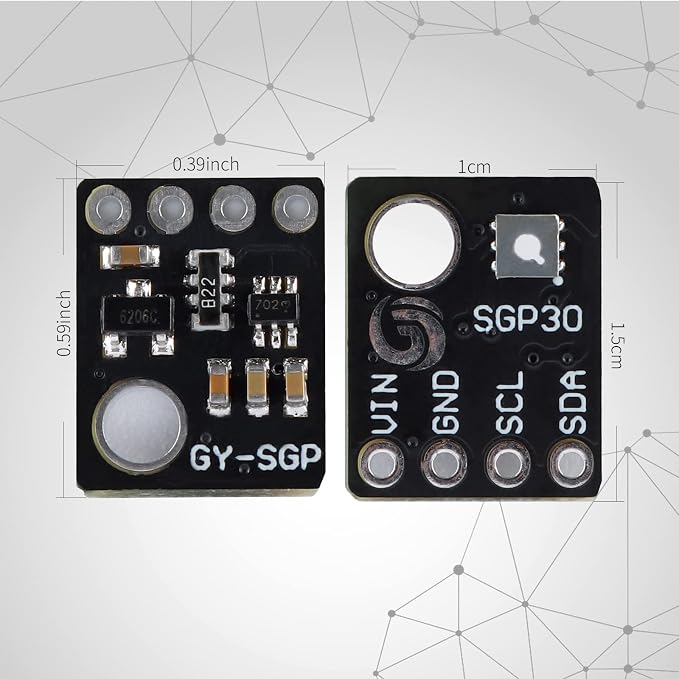

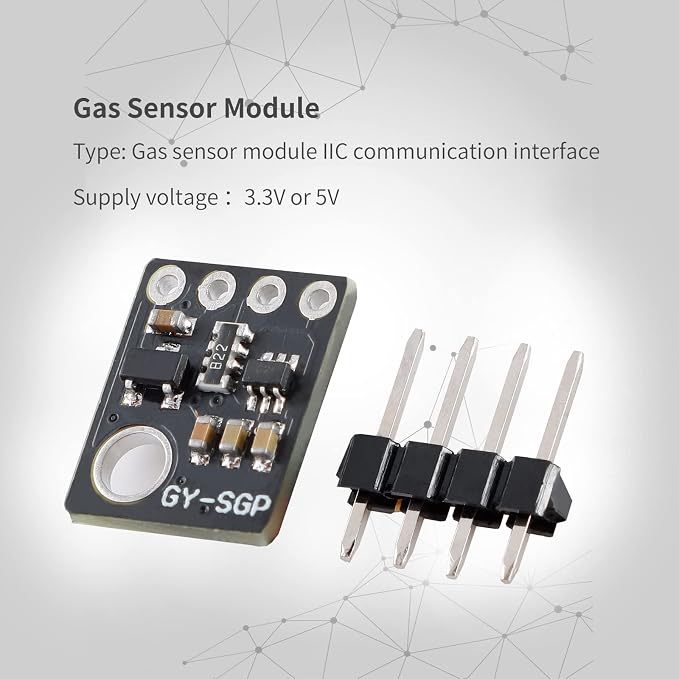

- ♥ Product features:1. Supply voltage 3.3V or 5V;2.IIC communication interface,<br> <br>3. Imported highly sensitive SGP30 formaldehyde sensor, chip power supply voltage is 1.8V;<br> <br>4. Compact and practical design;<br> <br>5. The power consumption of 40 ma;<br> <br>6. The onboard 1.8V LDO chip supplies power to SGP30, so the input power can be 3.3V or 5V <br> <br>7. Product pins: VCC (3.3-5V), GND, SCL, SDA (4 pins in total)<br>
- ♥ Product use: SGP30 module can be used in air quality detectors, formaldehyde detectors, portable gas detectors, various DIY designs, etc.

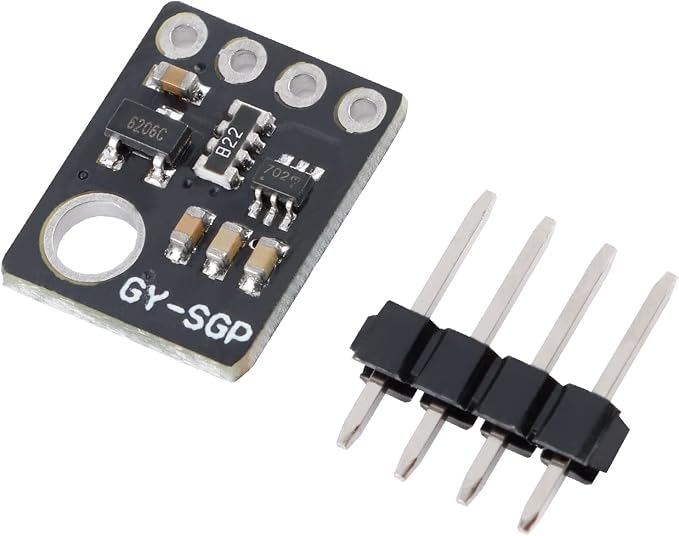

- ♥ packing list: 1X GY-SGP30 Gas Sensor1x4 pin header
Why Choose the ECBuying GY-SGP30 Gas Sensor
In a market full of indoor air quality meters options, the GY-SGP30 Gas Sensor, Air Quality Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, a Digital Multi-Pixel Gas Sensor for Indoor Air Quality Monitoring,co2 Sensor Arduino I2C stands apart by combining value-driven engineering with gy-sgp30 gas, achieving thoughtful design.
Best For
Anyone focused on daily routines should consider the GY-SGP30 Gas Sensor, Air Quality Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, a Digital Multi-Pixel Gas Sensor for Indoor Air Quality Monitoring,co2 Sensor Arduino I2C for its reliable performance and value-driven design.
Quick Summary
The ECBuying GY-SGP30 Gas Sensor is a Indoor Air Quality Meters product by ECBuying. Brand: EC Buying. Style: modern. Power Source: Corded Electric. Color: Black. Item Weight: 0.18 Ounces. Price: $26.38.
Product Specifications
| Specification | Details |
|---|---|
| Brand | EC Buying |
| Style | modern |
| Power Source | Corded Electric |
| Color | Black |
| Item Weight | 0.18 Ounces |
| Alarm | Audible |
| Operating Humidity | 95 percent |
| Compatible Devices | Arduino |
| Sensor Type | Photoelectric |
| Material | metal |
