Product Overview
The Green Line Laser Module 520nm Class I, 3~6VDC, >90° Fan Angle, 1~20 meters working distance, VLM-520-55 LPO, APC Control – Industrial Alignment Laser for Wood, Metal, Machine Vision – Made in Taiwan prioritizes reliable performance, achieved through durable construction for daily routines. Built with Aluminum, measuring 1.5"L x 0.39"W, available in Green. Notable features include direct green and green line, contributing to its reliable character.
Key Features
- Direct Green Line Laser: High-quality straight green line laser module (520nm) using direct diode, not DPSS. Provides stable, bright, and precise green line projection for industrial alignment and measurement.
- Non-DPSS Stable Operation: Operates reliably from –4°F to 140°F (–20°C to +60°C). The direct green diode design offers faster startup, lower power loss, and consistent performance across environments.

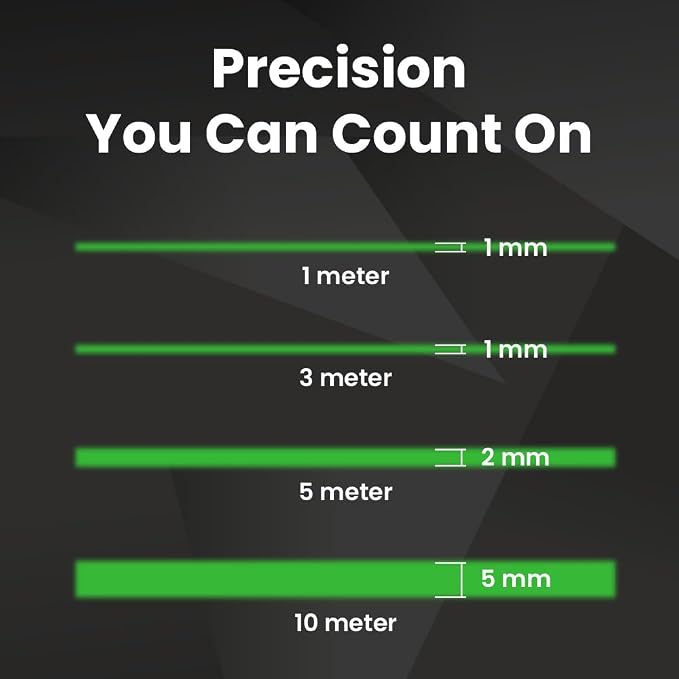

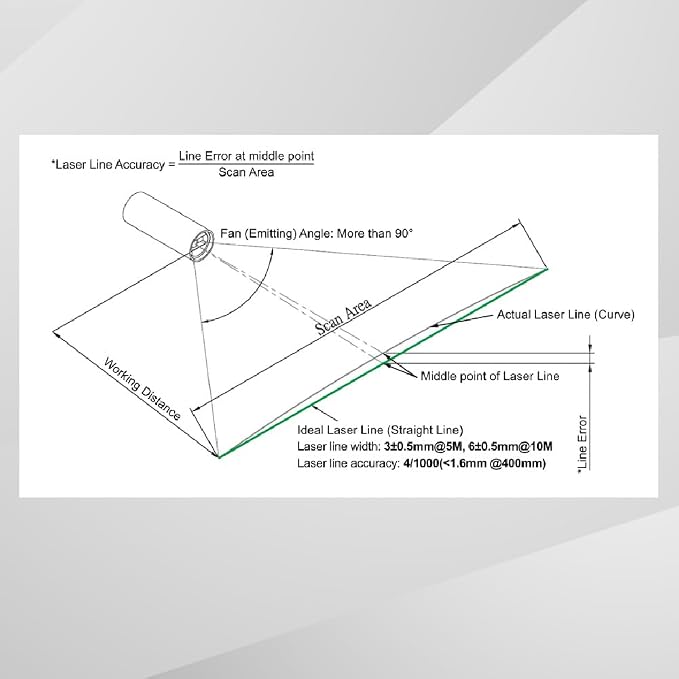

- Optical Precision: Laser power output class 1, eye safe. Laser beam is focused at 10m for optimal line clarity between 3~20m. Line width: 3±0.5mm @5m, 6±0.5mm @10m. Fan angle >90° for wide coverage and uniform brightness. Optical power output: 4~5mW
- Durable Industrial Design: Compact housing (Ø10×38mm) with sturdy construction. Operates on 3–6VDC with built-in APC driver circuit to maintain constant output power and ensure safe, stable performance.
- Long Lifespan & Made in Taiwan: Mean Time To Failure (MTTF) of 10,000 hours at 25°C. Designed and manufactured in Taiwan to ensure reliability, precision, and long-term durability for professional use.
- Wide Industrial Applications: Ideal for alignment and positioning in industrial environments, including wood processing, metal fabrication, textile production, food industry, stone cutting, automation systems, and medical or optical equipment calibration. Provides precise, reliable laser guidance from 1–20 m working distance.
Why Choose the Quarton Green Line Laser Module 520nm Class I
The Green Line Laser Module 520nm Class I, 3~6VDC, >90° Fan Angle, 1~20 meters working distance, VLM-520-55 LPO, APC Control – Industrial Alignment Laser for Wood, Metal, Machine Vision – Made in Taiwan combines direct green with thoughtfully designed build quality, giving users thoughtful design they can rely on across line lasers situations.
Best For
The Quarton Green Line Laser Module 520nm Class I is best suited for: alignment and positioning in industrial environments.
Quick Summary
The Quarton Green Line Laser Module 520nm Class I is a Line Lasers product by Quarton. Brand: Quarton. Material: Aluminum. Color: Green. Product Dimensions: 1.5"L x 0.39"W. Style: Green line laser - VLM-520-55 LPO. Price: $140.23.

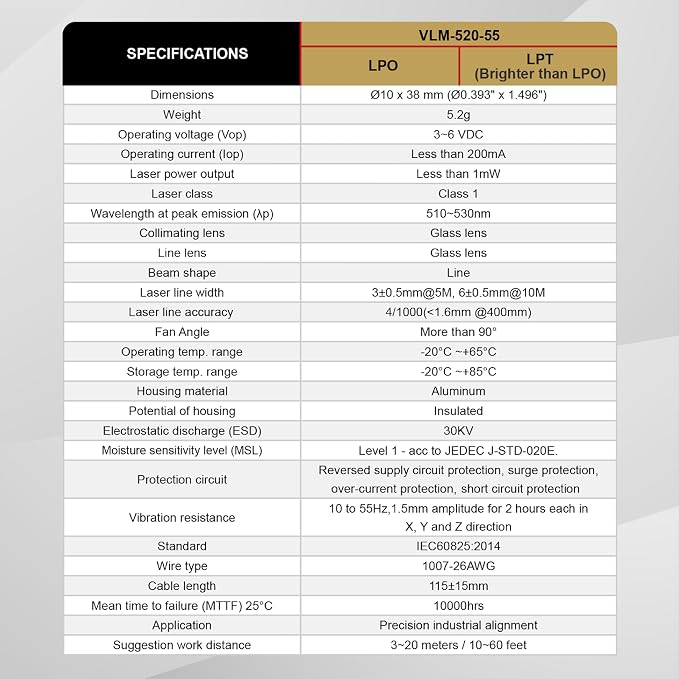

Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Material | Aluminum |
| Color | Green |
| Product Dimensions | 1.5"L x 0.39"W |
| Style | Green line laser - VLM-520-55 LPO |
