Product Overview
Practical, well-made, and built around everyday convenience, the Green Circular Dot Laser Module with TTL Modulation, 520nm, Class 1, 10~36VDC, 0~1 meter working distance, VLM-520-71 LPO - Industrial Alignment Laser for Medical, Laboratory, Machine Vision is a strong pick for practical situations. Designed with Glass, Stainless Steel, available in Silver. Notable features include vlm-520-71 lpo and lpo produces, contributing to its value-driven character.
Key Features
- VLM-520-71 LPO produces an extremely small circular green laser dot with TTL modulation function, ideal for precision alignment within 1 meter. Provides a precision laser spot for applications such as tool path indication, component positioning verification, optical sensing alignment, calibration reference in inspection systems.

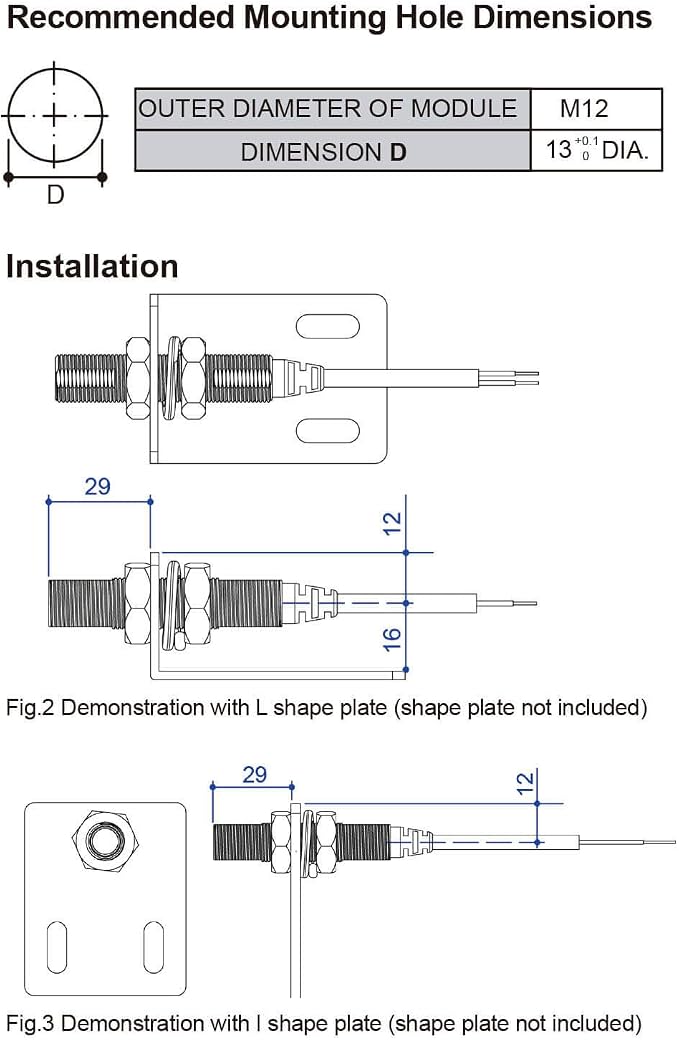

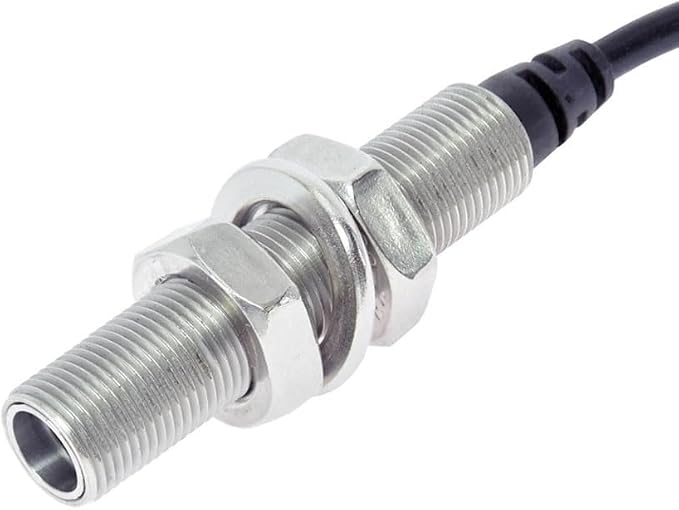

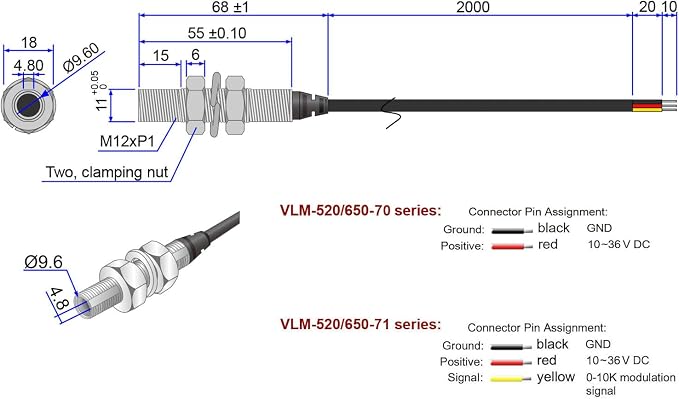

- Constructed with a stainless steel housing (M12 × 68 mm) and a high-quality aspherical glass lens, ensuring stable beam profile, optical clarity, and long-term reliability in continuous-use industrial environments.

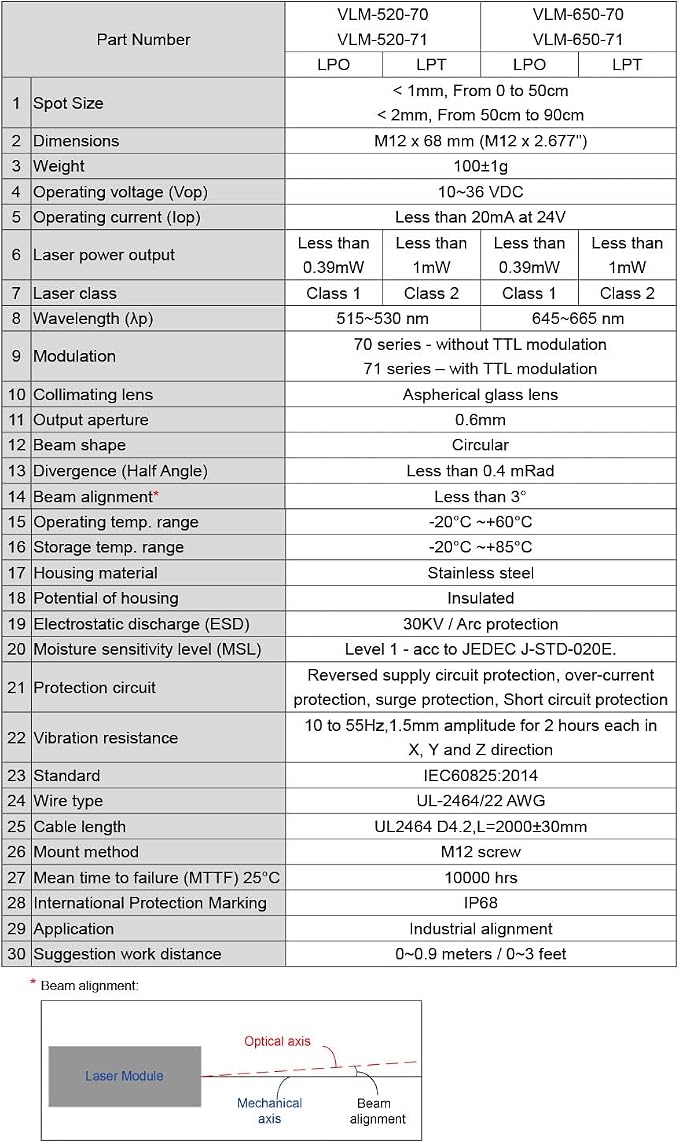

- Class 1 laser output (<0.39 mW) ensures eye-safe operation under normal conditions. Operating voltage: 10~36 VDC. Beam divergence <0.4 mRad provides a concentrated dot with consistent spot size within 1 meter. Since the laser dot is very small and focused within 1 meter, it will appear very bright - similar to a Class 2 laser - even though it is classified as Class 1.
- Engineered for long-term reliability, the 520 nm module is tested for vibration resistance (10~55 Hz, 1.5 mm amplitude) and built with an insulated housing to ensure electrical safety. It operates consistently from -20°C to +60°C, making it ideal for demanding environments such as manufacturing automation, inspection stations, CNC systems and industrial tooling applications.
- Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
Why Choose the Quarton Green Circular Dot Laser Module with TTL Modulation
The Green Circular Dot Laser Module with TTL Modulation, 520nm, Class 1, 10~36VDC, 0~1 meter working distance, VLM-520-71 LPO - Industrial Alignment Laser for Medical, Laboratory, Machine Vision earns repeat purchases through time-tested construction and vlm-520-71 lpo, both delivering satisfying experience.
Best For
The Quarton Green Circular Dot Laser Module with TTL Modulation is best suited for: precision alignment within 1 meter, demanding environments such as manufacturing automation.
Quick Summary
The Quarton Green Circular Dot Laser Module with TTL Modulation is a Diode Lasers product by Quarton. Brand: Quarton. Material: Glass, Stainless Steel. Color: Silver. Style: VLM-520-71 LPO - Green laser, Class 1, with TTL. Operation Mode: Automatic. Price: $264.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Material | Glass, Stainless Steel |
| Color | Silver |
| Style | VLM-520-71 LPO - Green laser, Class 1, with TTL |
| Operation Mode | Automatic |
