Product Overview

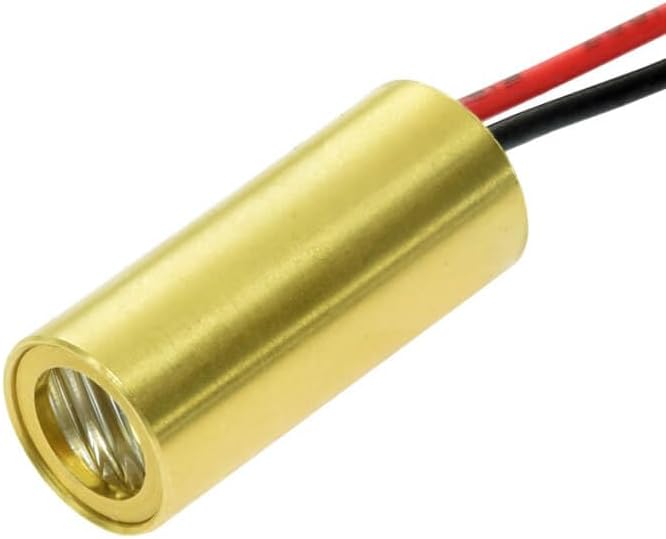

Few products in this space combine thoughtfully designed build with reliable performance as cleanly as the Economical Red Crosshair Laser Module, 650nm, Class 1 eye-safe, VLM-650-29 LPT - With APC Driver, D9 x L26 mm, 2.6~6 VDC Operation Voltage, for 0~1 meter working distance, Laser Head for daily routines. Made with Metal, Plastic, weighing 15 Grams. Notable features include vlm-650-29 lpt and lpt uses, contributing to its versatile character.
Key Features
- VLM-650-29 LPT uses a Red Laser Diode for large temperature operation range. It is optimized to generate a red Crosshair Laser with an Emitting Angle of More than 60°, making it ideal for cost-saving projects requiring reliable performance.

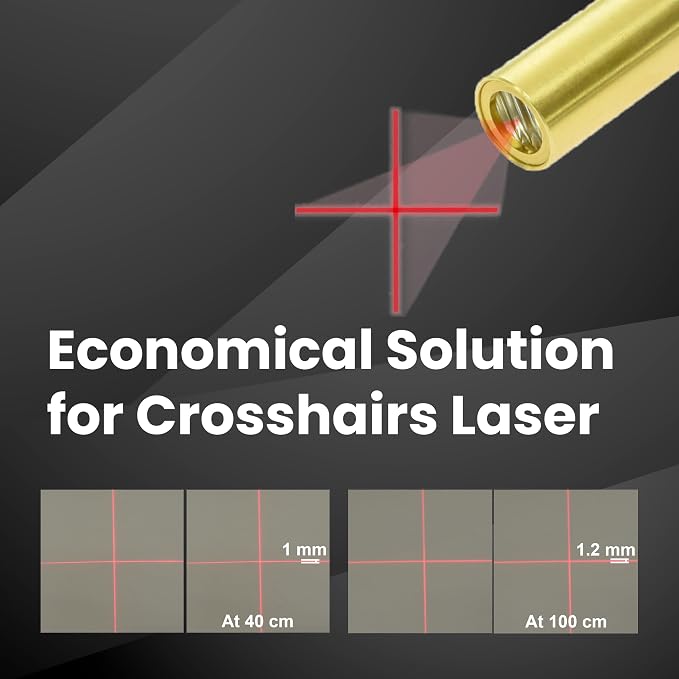

- Cost-Efficient with Reliable Performance: Built with Aspherical Plastic Lens and Plastic Wavy Lens to provide a visible Crosshair Laser. The Line-width is optimized at 40 cm, achieving 1 mm line width. It is rated for a Mean Time To Failure (MTTF) of 5000 hrs at 25°C.

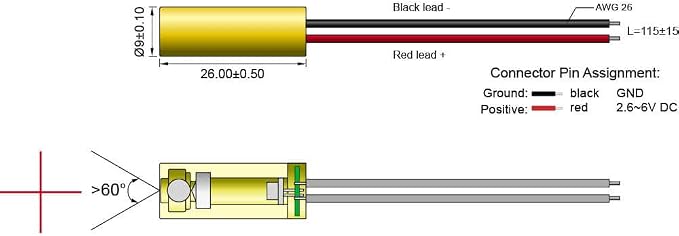

- Wavelength: 645~665 nm (Red); Optical Power: Less than 2 mW, Laser Power output: Less than 0.39mW (Class 1 eye-safe); Operating Voltage: 2.6~6 VDC. As an economical solution for laser Crosshair generator applications, its Class 1 safety rating allows for safe integration into a wide range of consumer and industrial systems.
- Features a patented solid brass structure for shock resistance and heat transfer consideration. The integrated APC driver circuit enables the laser power output to be safe and constant, delivering dependable operation while maintaining overall project cost-efficiency.

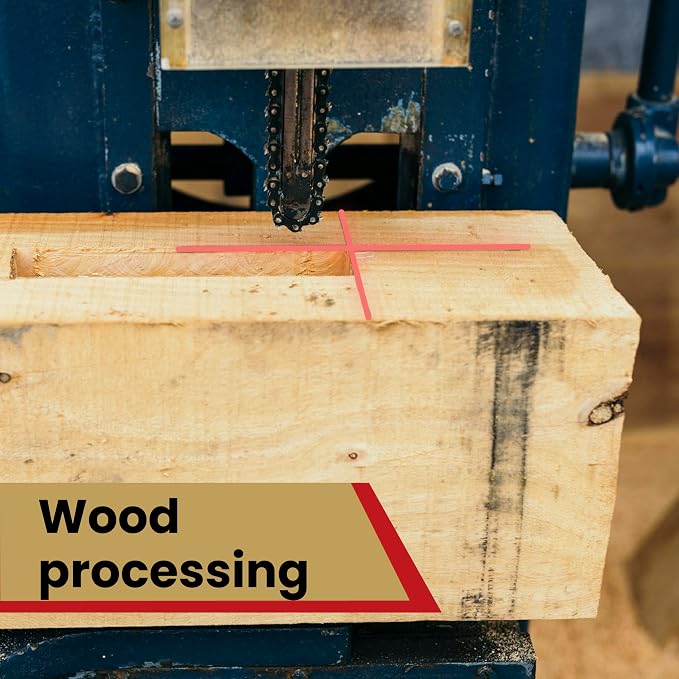

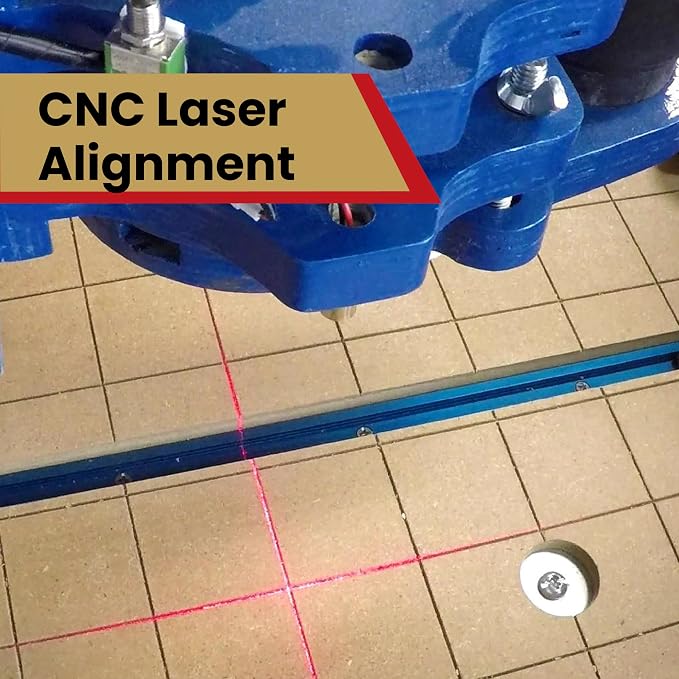

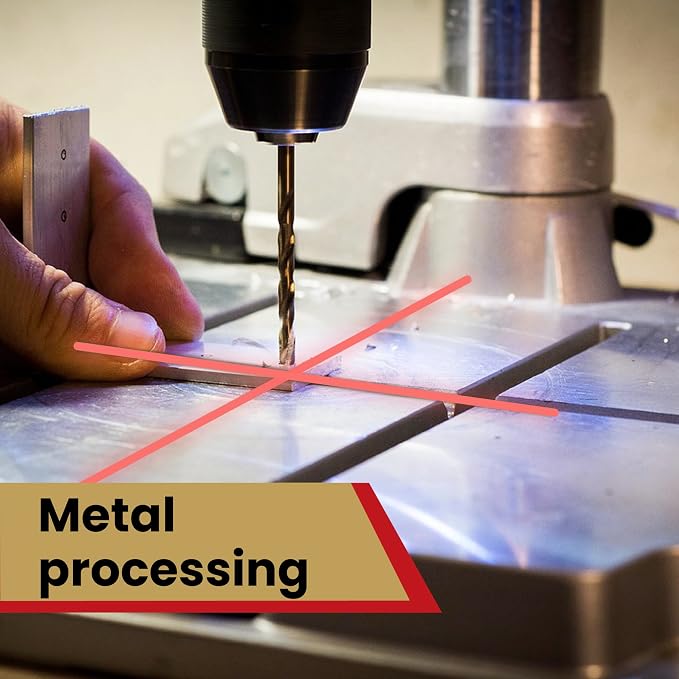

- Optimized as a budget-friendly solution for applications including leveling, alignment, measuring, and positioning. This module also supports in Wood processing, Metal processing, Automotive industry, and Medical or science. Suggested work distance is 0~1 meter.
- Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
Why Choose the Quarton Economical Red Crosshair Laser Module
The Economical Red Crosshair Laser Module, 650nm, Class 1 eye-safe, VLM-650-29 LPT - With APC Driver, D9 x L26 mm, 2.6~6 VDC Operation Voltage, for 0~1 meter working distance, Laser Head brings together value-driven and user-tested qualities, plus vlm-650-29 lpt, to deliver thoughtful design in line lasers settings.
Best For
The Quarton Economical Red Crosshair Laser Module is best suited for: cost-saving projects requiring reliable performance.
Quick Summary
The Quarton Economical Red Crosshair Laser Module is a Line Lasers product by Quarton. Brand: Quarton. Material: Metal, Plastic. Style: Red crosshair laser. Item Weight: 15 Grams. Operation Mode: Automatic. Price: $54.85.

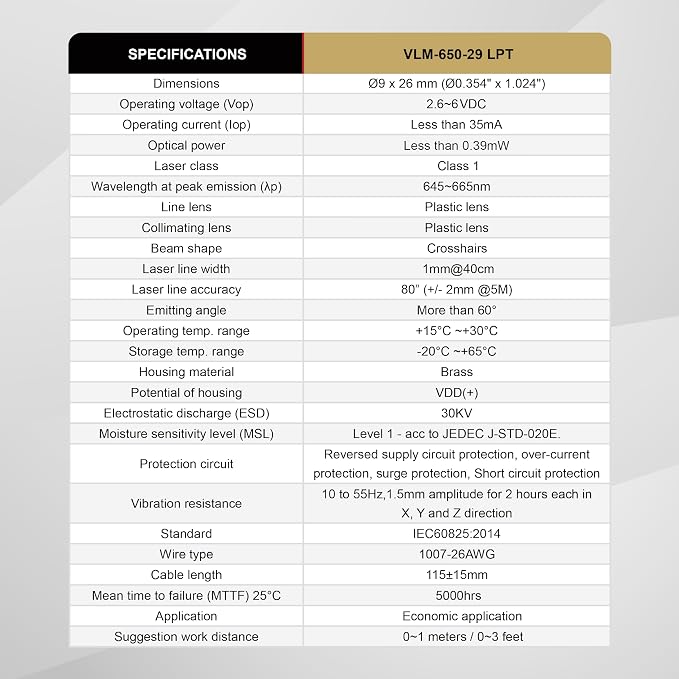

Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Material | Metal, Plastic |
| Style | Red crosshair laser |
| Item Weight | 15 Grams |
| Operation Mode | Automatic |
