Product Overview

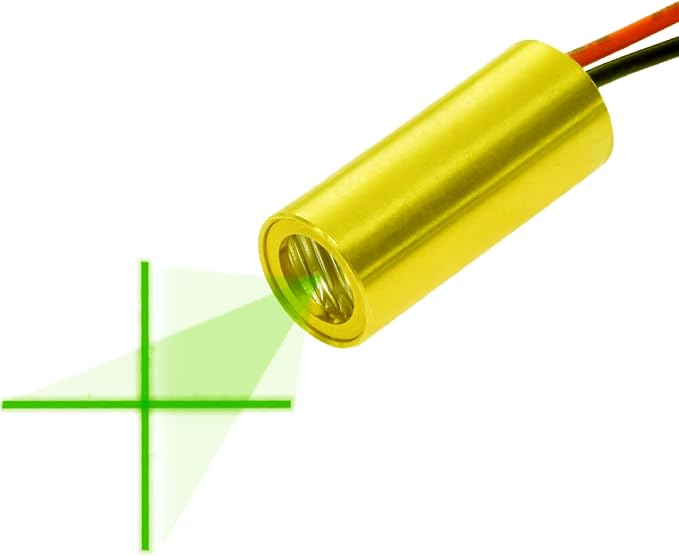

Practical practical design meets everyday convenience in the Economical Green Crosshair Laser Module, 520nm, Class 1 Eye-Safe, VLM-520-29 LPT - with APC Driver, D9 x L26 mm, 7~10 VDC Operation Voltage, for 0~1 Meter Working Distance, Laser Head, Made in Taiwan, made for practical situations. Crafted from Brass, Plastic, measuring 0.35"L x 1.02"W, available in Green. Notable features include economical green and green crosshair, contributing to its thoughtfully designed character.
Key Features
- Economical Green Crosshair Laser Module: VLM-520-29 LPT uses a Direct Green Laser Diode for large temperature operation range. It is optimized to generate a green Crosshair Laser with an Emitting Angle of More than 60°, making it ideal for cost-saving projects requiring reliable performance. 520 nm green laser is significantly more visible to the human eye (5-10x brighter than red lasers at the same power) due to the eye's high sensitivity to green light.

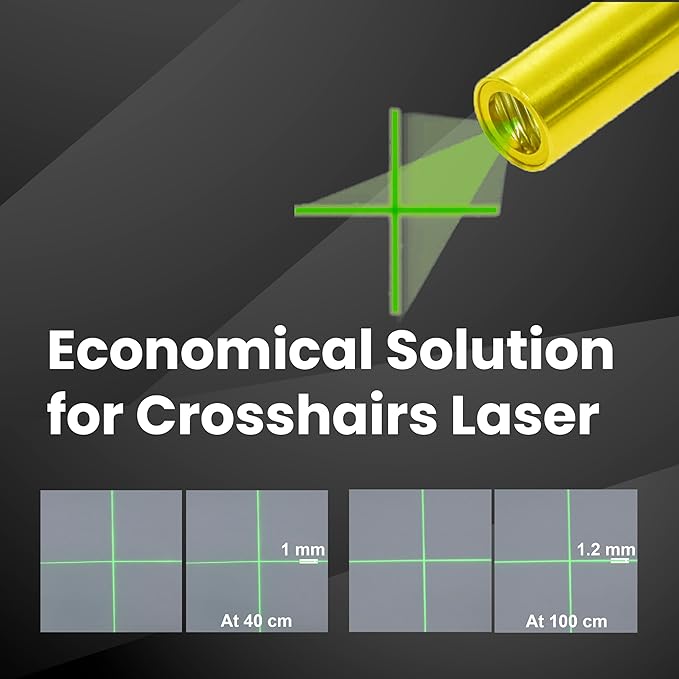

- Cost-Efficient with Reliable Performance: Built with Aspherical Plastic Lens and Plastic Wavy Lens to provide a visible Crosshair Laser. The Line-width is optimized at 40 cm, achieving 1 mm line width. It is rated for a Mean Time To Failure (MTTF) of 5000 hrs at 25°C.
- Wavelength: 505~530 nm (Green); Optical Power: 4~5 mW, Laser Power output: Less than 0.39mW (Class 1 eye-safe); Operating Voltage: 7~10 VDC. As an economical solution for laser Crosshair generator applications, its Class 1 safety rating allows for safe integration into a wide range of consumer and industrial systems.
- Features a patented solid brass structure for shock resistance and heat transfer consideration. The integrated APC driver circuit enables the laser power output to be safe and constant, delivering dependable operation while maintaining overall project cost-efficiency.
- Optimized as a budget-friendly solution for applications including leveling, alignment, measuring, and positioning. This module also supports in Wood processing, Metal processing, Automotive industry, and Medical or science. Suggested work distance is 0~1 meter.
- Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
Why Choose the Quarton Economical Green Crosshair Laser Module
In side-by-side comparisons within the line lasers space, the Economical Green Crosshair Laser Module, 520nm, Class 1 Eye-Safe, VLM-520-29 LPT - with APC Driver, D9 x L26 mm, 7~10 VDC Operation Voltage, for 0~1 Meter Working Distance, Laser Head, Made in Taiwan pulls ahead through well-made engineering and economical green.
Best For
The Quarton Economical Green Crosshair Laser Module is best suited for: cost-saving projects requiring reliable performance.
Quick Summary
The Quarton Economical Green Crosshair Laser Module is a Line Lasers product by Quarton. Brand: Quarton. Material: Brass, Plastic. Color: Green. Product Dimensions: 0.35"L x 1.02"W. Style: Green crosshair laser - VLM-520-29 LPT. Price: $70.93.

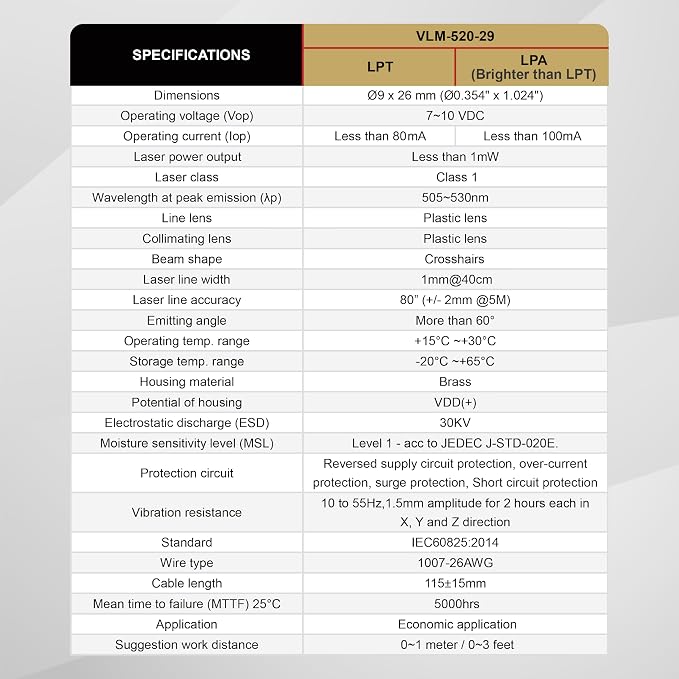

Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Material | Brass, Plastic |
| Color | Green |
| Product Dimensions | 0.35"L x 1.02"W |
| Style | Green crosshair laser - VLM-520-29 LPT |
