Product Overview

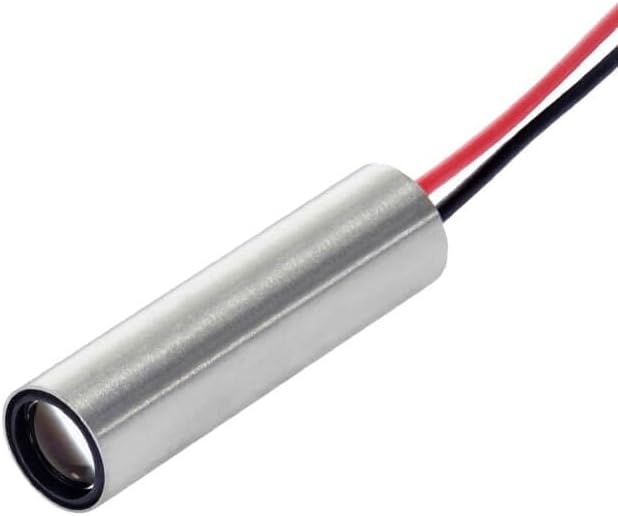

The Dot Laser Module 52 series (Non-DPSS Dot module: operating temperature range : -4 °F ~ 140 °F) (VLM-520-52 LPA - Green Laser, Class 3R) is engineered for everyday needs, featuring reliable build and thoughtful design. Constructed using Stainless Steel, measuring 1.2"L x 0.33"W, available in Green. Notable features include high-quality construction and module features, contributing to its practical character.
Key Features
- High-Quality Construction: this module features stainless steel housing for exceptional durability and reliability in industrial environments.
- Advanced Optical Design: Incorporates a direct 520 nm green laser diode with an aspherical glass collimating lens, delivering a sharp, stable laser spot and operating effectively across a wide temperature range. Beam Divergence (Full Angle): 0.5 mRad.

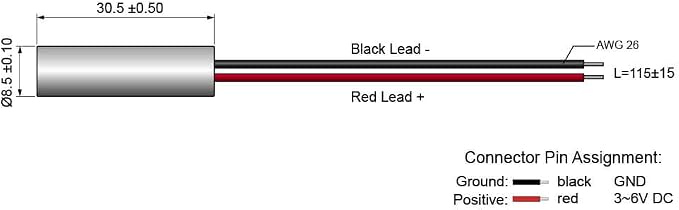

- Integrated Safety & Performance Features: Equipped with an Auto-Power-Control (APC) driver circuit to ensure consistent and safe laser output. Operating Voltage: 3~6 VDC. Connection Type: Lead wire. Dimension: Ø8.5 x 30.5 mm (Ø0.334" x 1.2"). Laser Class: LPT - Class 2 (0.7 mW)
- Superior Visibility: The 520 nm green laser is 5~10 times brighter to the human eye than red lasers at the same power, making it ideal for daylight use, outdoor applications, long-distance visibility, and precise alignment tasks. Idea for : Positioning, Measuring, Pointing, Laser Sighting Device, Automotive Industry and Medical & Science.
- APC driver circuit enables constant Laser output power. Notice: Laser modules are NOT laser pens. Laser modules are NOT supposed to be used for commercial use like normal laser pointers.
Why Choose the Quarton Dot Laser Module 52 series (Non-DPSS Dot module: operating temperature range : -4 °F ~ 140 °F) (VLM-520-52 LPA - Green Laser
The Dot Laser Module 52 series (Non-DPSS Dot module: operating temperature range : -4 °F ~ 140 °F) (VLM-520-52 LPA - Green Laser, Class 3R) reflects deliberate versatile choices, with high-quality construction that supports long-term value during regular diode lasers use.
Best For
The Quarton Dot Laser Module 52 series (Non-DPSS Dot module: operating temperature range : -4 °F ~ 140 °F) (VLM-520-52 LPA - Green Laser is best suited for: daylight use.
Quick Summary
The Quarton Dot Laser Module 52 series (Non-DPSS Dot module: operating temperature range : -4 °F ~ 140 °F) (VLM-520-52 LPA - Green Laser is a Diode Lasers product by Quarton. Brand: Quarton. Material: Stainless Steel. Color: Green. Product Dimensions: 1.2"L x 0.33"W. Style: Green Laser, Class 3R - VLM-520-52 LPA. Price: $101.44.

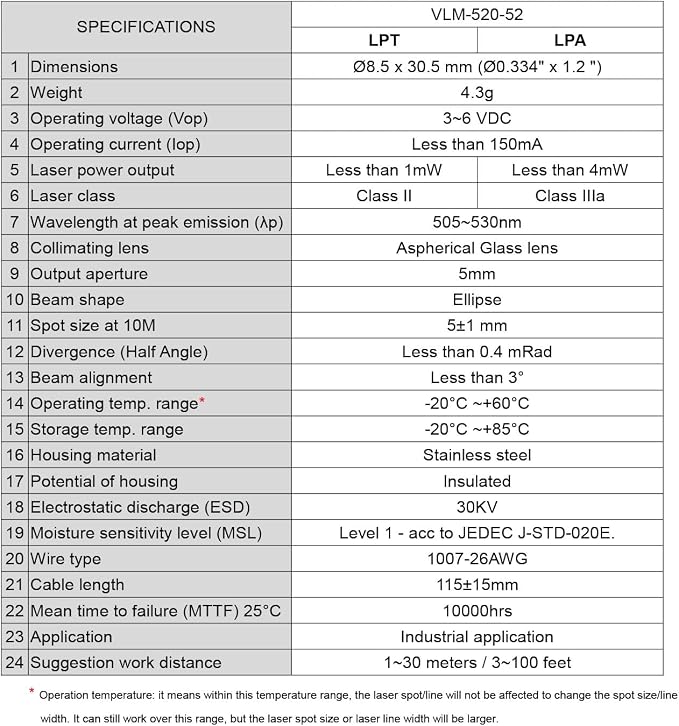

Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Material | Stainless Steel |
| Color | Green |
| Product Dimensions | 1.2"L x 0.33"W |
| Style | Green Laser, Class 3R - VLM-520-52 LPA |
