Product Overview
Designed for daily routines, the Blue Circular Dot Laser Module with TTL Modulation, 450nm, Class 3R, 10~36VDC, 0~1 meter working distance, VLM-450-71 LPA - Industrial Alignment Laser for Medical, Laboratory, Machine Vision combines thoughtfully designed construction with reliable performance. Key specs include brand: Quarton, style: VLM-450-71 LPA - Blue laser, Class 3R, with TTL, unit count: 1.0 Count. Notable features include vlm-450-71 lpa and lpa produces, contributing to its versatile character.
Key Features

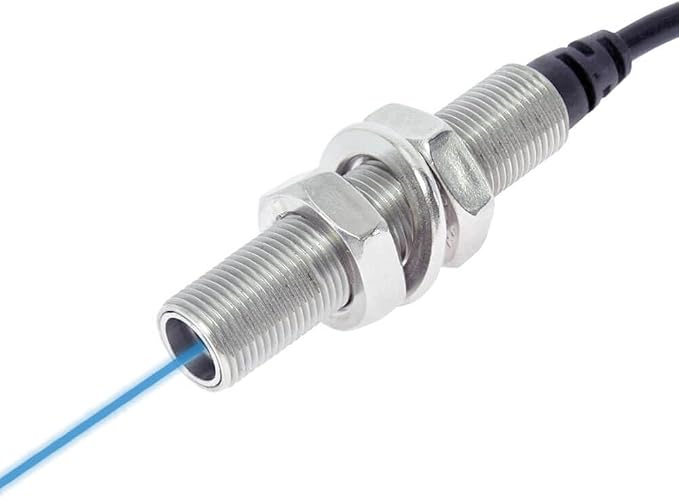

- VLM-450-71 LPA produces an extremely small circular blue laser dot with TTL modulation function, ideal for precision alignment within 1 meter. Provides a precision laser spot for applications such as tool path indication, component positioning verification, optical sensing alignment, calibration reference in inspection systems.

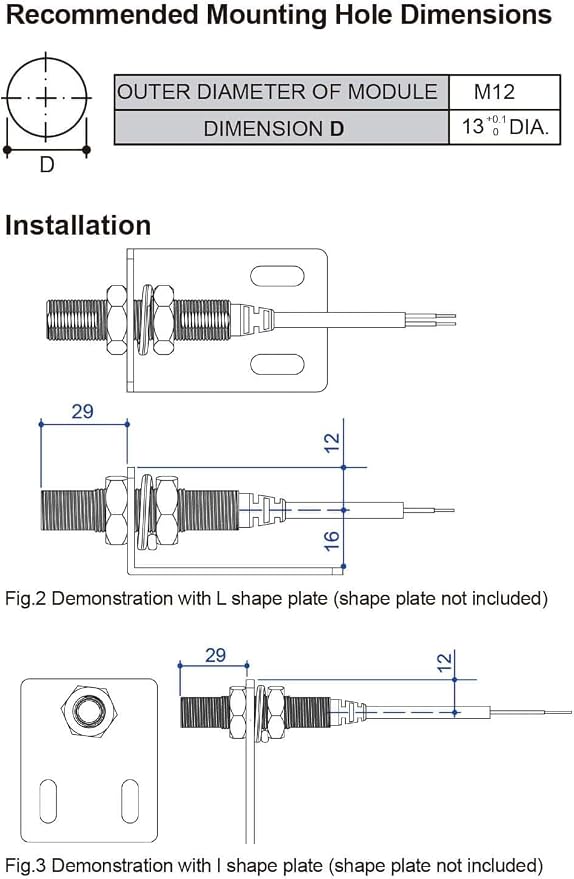

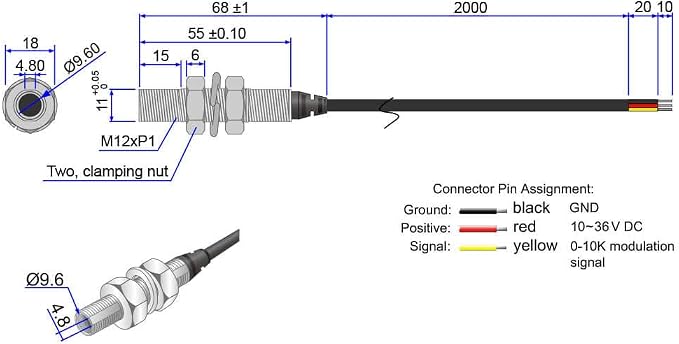

- Constructed with a stainless steel housing (M12 × 68 mm) and a high-quality aspherical glass lens, ensuring stable beam profile, optical clarity, and long-term reliability in continuous-use industrial environments.

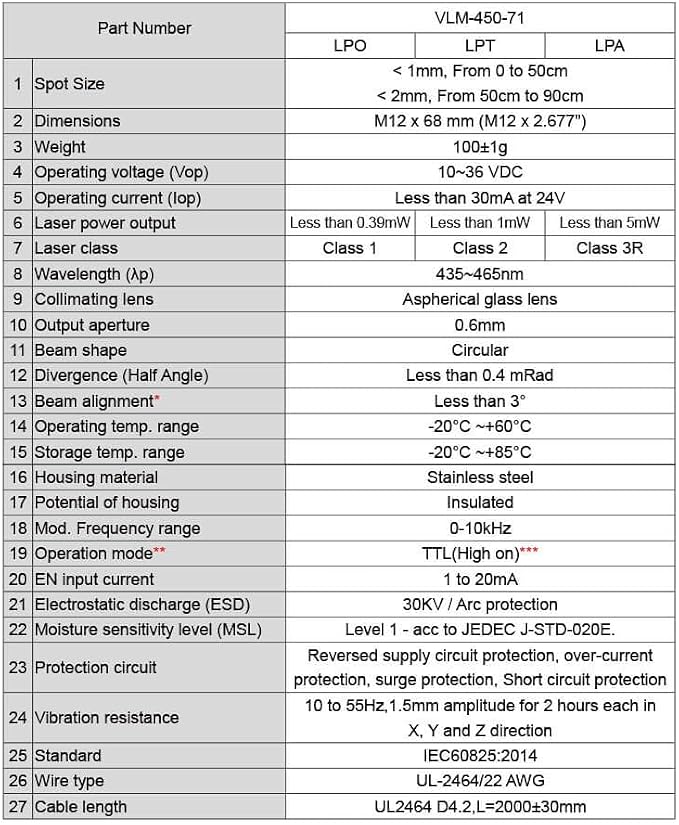

- Class 3R / Class IIIa laser output (less than 5 mW). Operating voltage: 10~36 VDC. Beam divergence <0.4 mRad provides a concentrated dot with consistent spot size within 1 meter. Since the laser dot is very small and focused within 1 meter, it will appear very bright.
- Engineered for long-term reliability, the 450 nm module is tested for vibration resistance (10~55 Hz, 1.5 mm amplitude) and built with an insulated housing to ensure electrical safety. It operates consistently from -20°C to +60°C, making it ideal for demanding environments such as manufacturing automation, inspection stations, CNC systems and industrial tooling applications.
- Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
Why Choose the Quarton Blue Circular Dot Laser Module with TTL Modulation
The Blue Circular Dot Laser Module with TTL Modulation, 450nm, Class 3R, 10~36VDC, 0~1 meter working distance, VLM-450-71 LPA - Industrial Alignment Laser for Medical, Laboratory, Machine Vision demonstrates value-driven engineering with practical features like vlm-450-71 lpa, leading to thoughtful design that holds up over time.
Best For
The Quarton Blue Circular Dot Laser Module with TTL Modulation is best suited for: precision alignment within 1 meter, demanding environments such as manufacturing automation.
Quick Summary
The Quarton Blue Circular Dot Laser Module with TTL Modulation is a Diode Lasers product by Quarton. Brand: Quarton. Style: VLM-450-71 LPA - Blue laser, Class 3R, with TTL. Unit Count: 1.0 Count. Price: $277.2.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Quarton |
| Style | VLM-450-71 LPA - Blue laser, Class 3R, with TTL |
| Unit Count | 1.0 Count |
