Product Overview
For everyday everyday needs, the Banana Pi OpenWrt One - Dual Band WiFi 6 Wireless Router - AP-24.XY Router with MediaTek MT7981B SoC 1GB DDR4 RAM, 1x 2.5GbE WAN 1x Gigabit LAN RJ45 Port, Support PoE AP PWM balances compact build with thoughtful design. measuring 1 GB. Notable features include openwrt one and one ap-24, contributing to its practical character.
Key Features

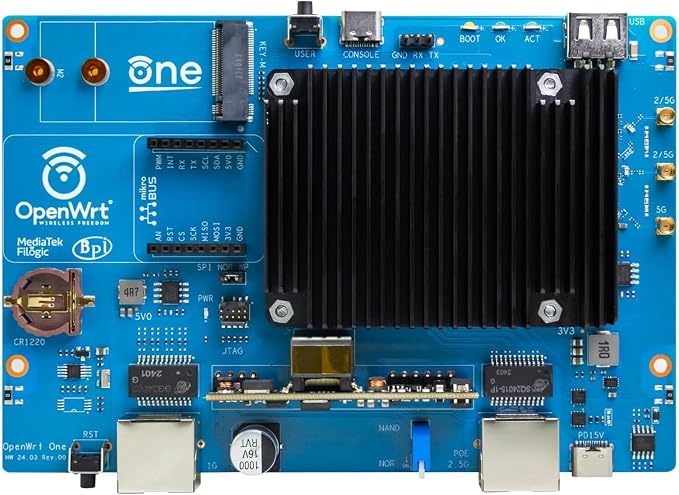

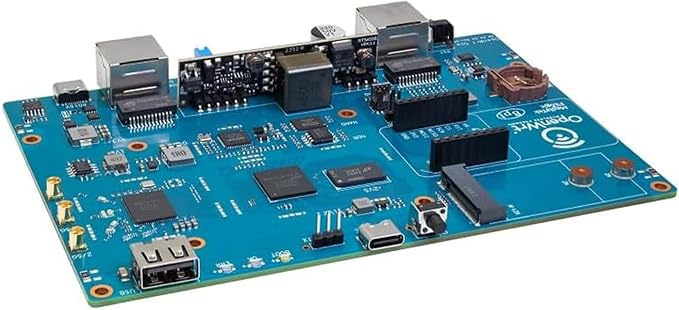

- OpenWrt One/AP-24.XY router board is based on the MediaTek MT7981B (Filogic 820) SoC and MediaTek MT7976C dual-band WiFi 6 chipset. It is the first official development board from the OpenWrt open-source community, co-designed with Banana Pi.

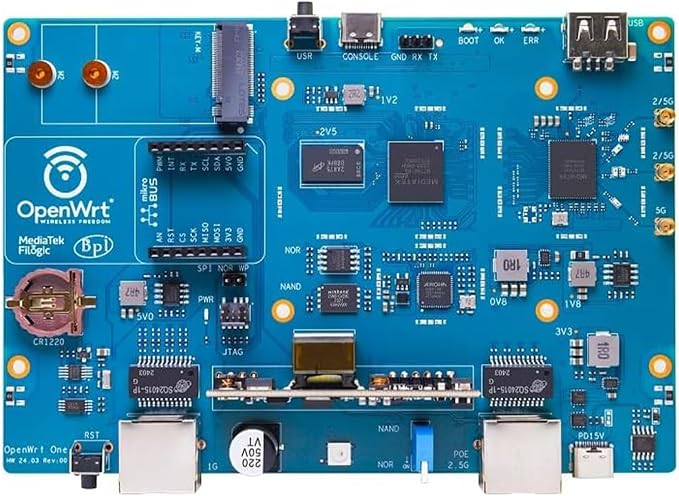

- OpenWrt One utilizes MediaTek's MT7981B SoC, featuring dual ARM Cortex-A53 cores clocked at 1.3 GHz. It comes equipped with 1 GB DDR4 RAM and 256 MB SPI NAND storage, integrating an additional 16 MB protected storage for system backup. Dual storage hardware safeguards the onboard system.

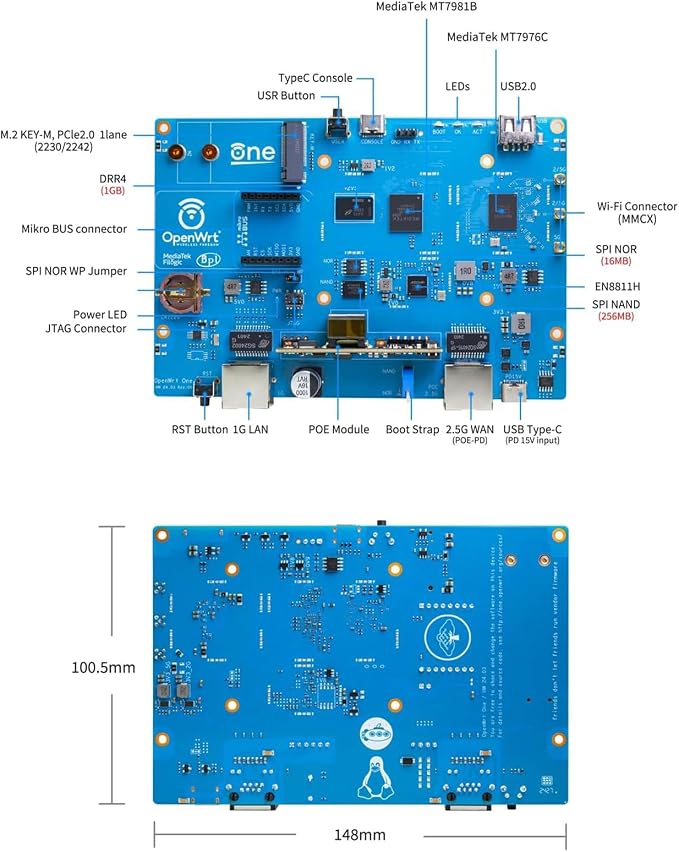

- OpenWrt One integrates an M.2 SSD interface, with a 2230/2242 NVMe PCIe 2x1 port available for adding external storage. It provides one USB 2.0 Type-A port and one mikroBUS expansion port, offering additional interfaces for a wide range of technical possibilities.
- MediaTek MT7981B is a compact Wi-Fi system-on-chip (SoC) for IoT devices, incorporating an embedded TCP/IP stack. Using the MT7981B, IoT devices can connect to other smart devices or cloud applications and services. Connectivity on the MT7981B is achieved via Wi-Fi in either Wi-Fi station or access point (AP) mode. The MT7981B provides 5 GPIO pins and 1 UART port. Additionally, PWM is supported in the application software.
- OpenWrt One/AP-24.XY router features Wi-Fi 6, dual-band, 3×3/2×2 MIMO, 1 × 2.5 G WAN network interface, and 1 Gigabit LAN network interface. It is suitable for maker DIY projects, OpenWrt software learning and development, IoT applications, Wi-Fi 6 wireless routing applications, NAS, and network communication applications.
- Getting Started or SDK Documentation: “ openwrt.org/toh/openwrt/one ”.
Why Choose the UEEGO Banana Pi OpenWrt One - Dual Band WiFi 6 Wireless Router - AP-24.XY Router with MediaTek MT7981B SoC 1GB DDR4 RAM
For long-term routers use, the Banana Pi OpenWrt One - Dual Band WiFi 6 Wireless Router - AP-24.XY Router with MediaTek MT7981B SoC 1GB DDR4 RAM, 1x 2.5GbE WAN 1x Gigabit LAN RJ45 Port, Support PoE AP PWM offers versatile build, openwrt one, and long-term value — a combination that pays off over time.
Best For
The UEEGO Banana Pi OpenWrt One - Dual Band WiFi 6 Wireless Router - AP-24.XY Router with MediaTek MT7981B SoC 1GB DDR4 RAM is best suited for: maker DIY projects.
Quick Summary
The UEEGO Banana Pi OpenWrt One - Dual Band WiFi 6 Wireless Router - AP-24.XY Router with MediaTek MT7981B SoC 1GB DDR4 RAM is a Routers product by UEEGO. Brand: UEEGO. Model Name: Banana Pi OpenWrt One/AP-24.XY Dual-band WiFi 6 Wireless Router. Ram Memory Installed Size: 1 GB. Memory Storage Capacity: 256 MB. CPU Speed: 1.3 GHz. Price: $219.43.
Product Specifications
| Specification | Details |
|---|---|
| Brand | UEEGO |
| Model Name | Banana Pi OpenWrt One/AP-24.XY Dual-band WiFi 6 Wireless Router |
| Ram Memory Installed Size | 1 GB |
| Memory Storage Capacity | 256 MB |
| CPU Speed | 1.3 GHz |
