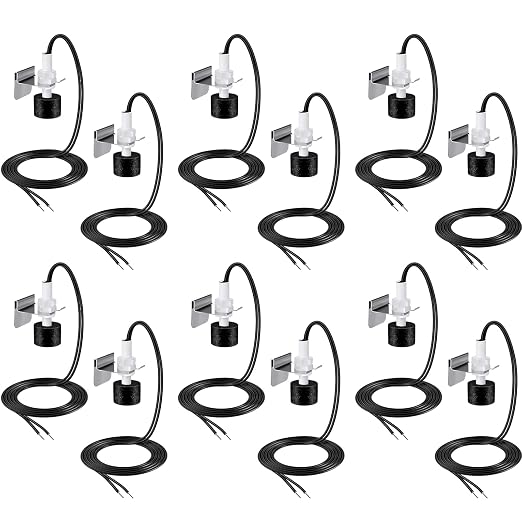

Product Overview
A quality take on daily routines, the 12 Pack AC Pan Float Switch Compatible with SS3, HVAC Float Switch, Water Leak Detector for HVAC System Drain, Install on Primary and Auxiliary Drain Pans delivers reliable performance where it matters. Made with Stainless Steel, measuring 8.07 x 6.69 x 2.87 inches. Notable features include effectively detect and detect condensate, contributing to its reliable character.
Key Features

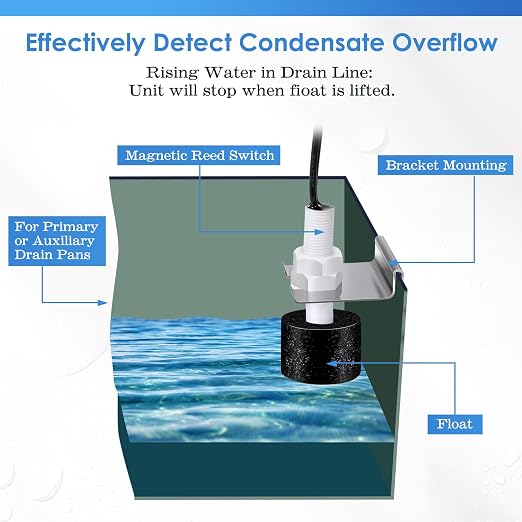

- Effectively Detect Condensate Overflow: The SS3 condensate overflow switch features a water sealed magnetic reed switch, effectively detects clogged air conditioning condensate drains and shuts off the system to prevent water damage to floors, wall and ceilings
- Protect Your HVAC System: The emergency shutoff float switch activates when excess water is detected in the pan due to drain blockage and automatically shuts off the HVAC system, preventing system damage and safeguarding your home

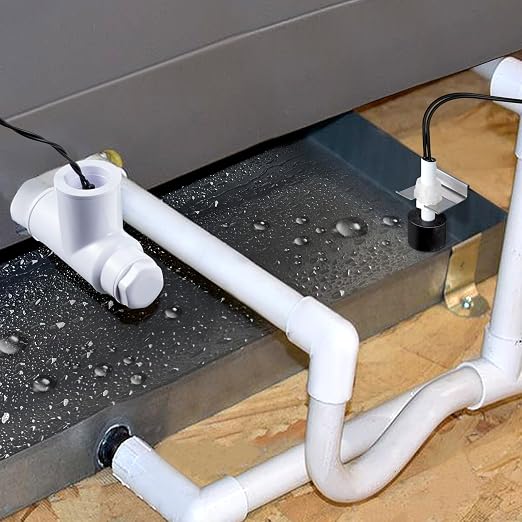

- Application: The specially designed steel mounting bracket clips firmly over the edge of most drain pans; The slim profiled SS3 can be installed on primary or auxiliary drain pan; The magnetic feed switch allows it to be installed off center and still perform correctly

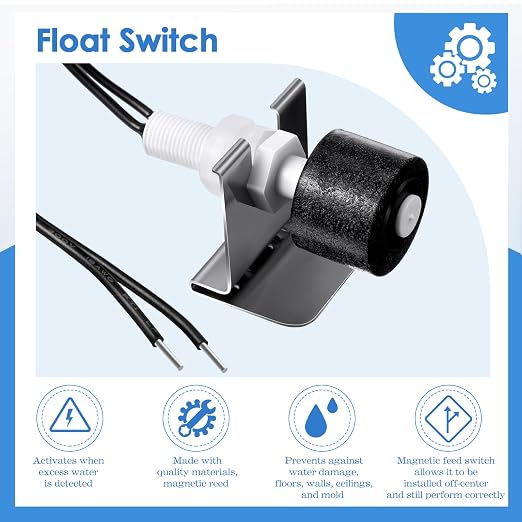

- Reliable Performance: Our AC pan float switch is made with non rust and non sticking materials, uniquely designed, magnetic reed switch will not stick or rust

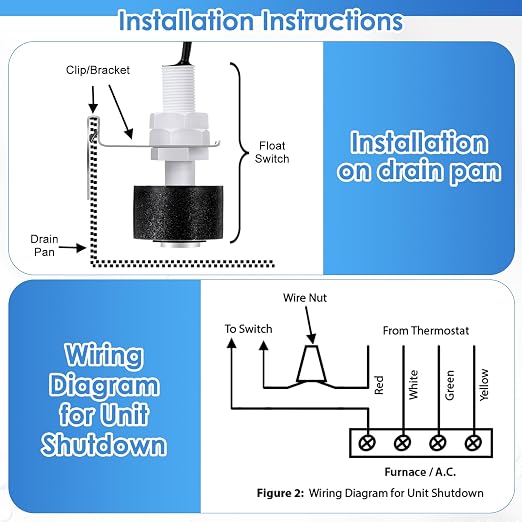

- Easy To Install: The AC Float Switch is designed for easy Installation; "Quick installation", simply attach the switch to the side of the pan and connect the wires using the included nuts to the HVAC system; Condensate overflow switch can be connected to either the red or yellow (thermostat) wires
Why Choose the Gulfmew 12 Pack AC Pan Float Switch Compatible with SS3
With effectively detect and hvac system, the 12 Pack AC Pan Float Switch Compatible with SS3, HVAC Float Switch, Water Leak Detector for HVAC System Drain, Install on Primary and Auxiliary Drain Pans achieves thoughtful design that others in the flow switches category often miss.
Best For
The Gulfmew 12 Pack AC Pan Float Switch Compatible with SS3 is best suited for: easy Installation; "Quick installation".
Quick Summary
The Gulfmew 12 Pack AC Pan Float Switch Compatible with SS3 is a Flow Switches product by Gulfmew. Operation Mode: automatic. Current Rating: 1250 Milliamps. Operating Voltage: 24 Volts (AC). Contact Type: Normally Closed. Connector Type: Screw Terminals. Price: $115.07.

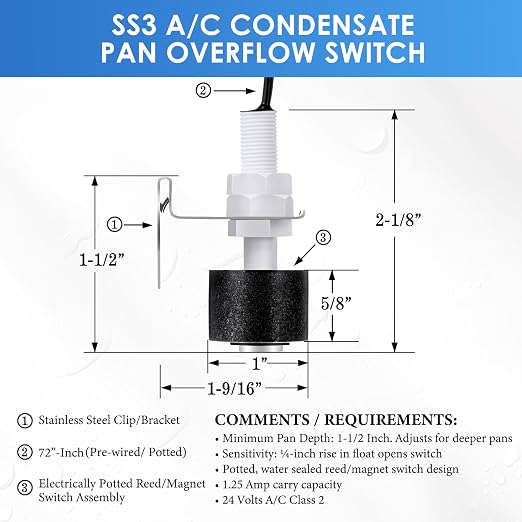

Product Specifications
| Specification | Details |
|---|---|
| Operation Mode | automatic |
| Current Rating | 1250 Milliamps |
| Operating Voltage | 24 Volts (AC) |
| Contact Type | Normally Closed |
| Connector Type | Screw Terminals |
| Brand | Gulfmew |
| Switch Type | Float Switch |
| Terminal | Screw |
| Material | Stainless Steel |
| Item dimensions L x W x H | 8.07 x 6.69 x 2.87 inches |
